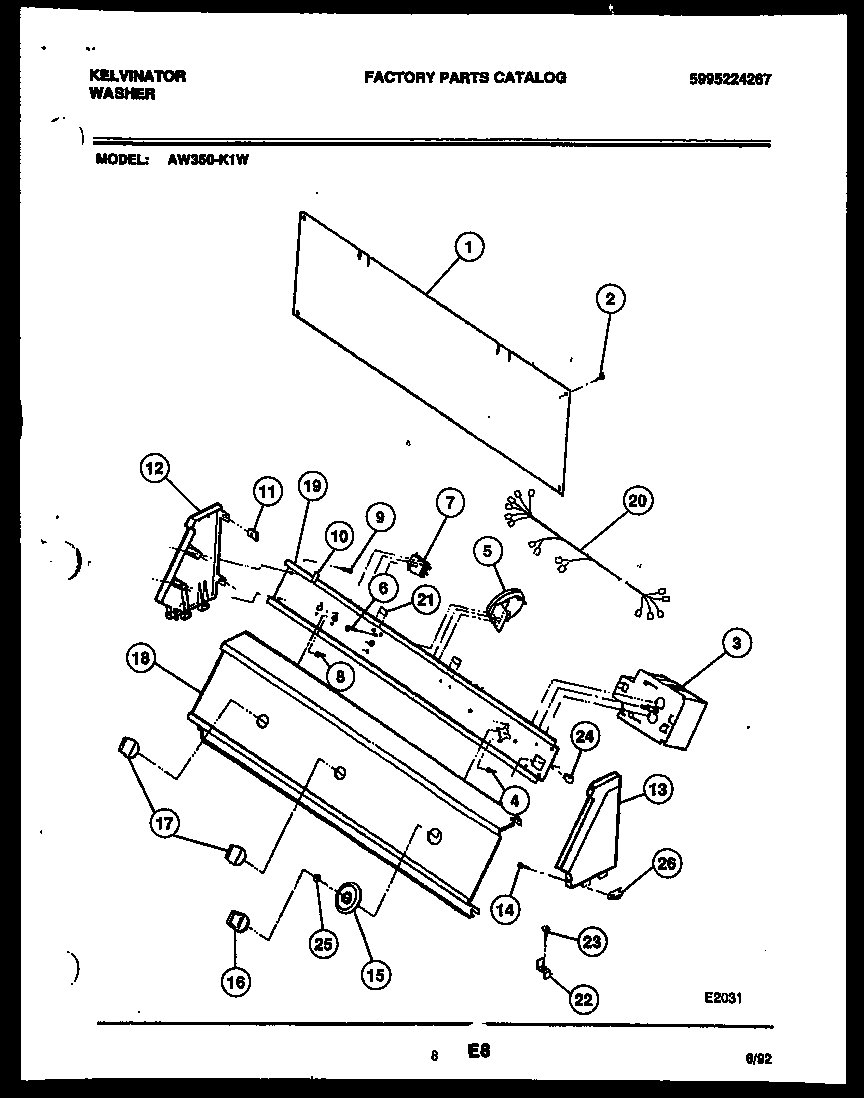

AW350-K1L 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	WCI 5303271760
4	SCREW (2)
5	WCI 5303210130
6	131168200 Frigidaire Dryer Screw
7	WCI 5303210965
8	WCI 3161259
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3281200
11	CLIP (8)
12	WCI 3205979
13	WCI 3205978
14	WCI 5303289526
15	WCI 5303210966
16	WCI 5303210967
17	WCI 5308015435
18	WCI 131060600
19	WCI 5303285145
20	WCI 131015700
21	PAD (2)
22	WCI 5379171000
23	131243800 Frigidaire Screw
24	WCI 5303285493
25	Spacer,washer ,timer shaft
26	CLIP
