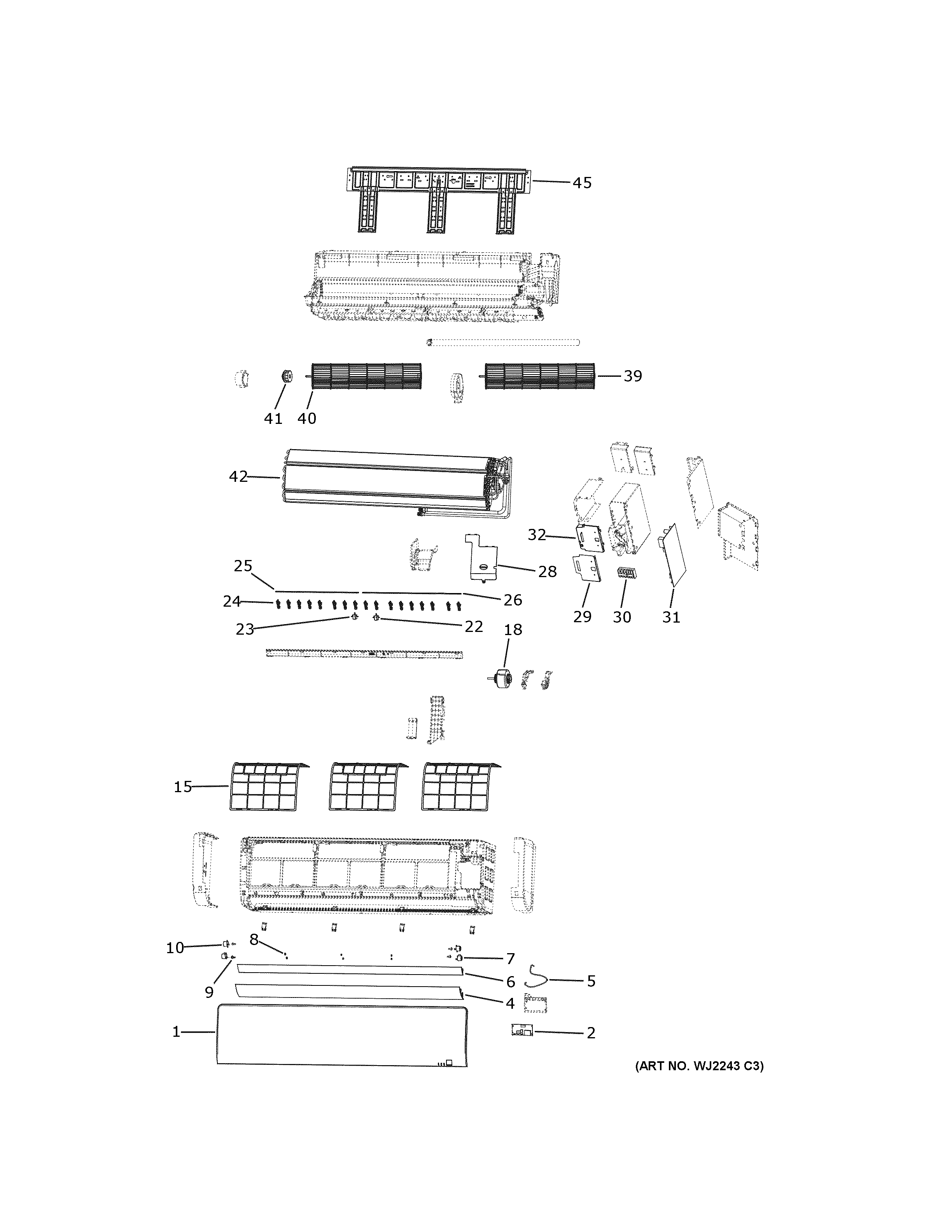

AW36LP2VHA ROOM AIR CONDITIONER

Products

Position	Product
1	TOP PANEL
2	DISPLAY PANEL
4	WJ94X24391 GE Top Horizontal Louver
5	WJ26X23042 GE Temperature Sensor Assembly
6	WJ71X24239 GE Flap Assembly
7	WJ94X22766 GE Air Motor Louvre
8	WJ01X24240 GE Louver Bushing
9	WJ01X24235 GE Shaft Jacket
10	LH HORIZONTAL LOUVER MOTOR
15	AIR FILTER
18	WJ94X23054 GE Indoor Motor Assembly
22	WJ94X22788 GE Right Swing Motor
23	WJ94X22787 GE Left Swing Motor
24	VERTICAL LOUVER
25	LH CONNECTING ROD
26	RH CONNECTING ROD
28	COVER
29	ELECTRICAL BOX COVER (METAL)
30	WJ26X23592 GE Terminal Block
31	WJ26X23588 GE Indoor Power Control Board
32	WJ76X24362 GE Electrical Box Cover
39	CROSS FLOW FAN RIGHT
40	CROSS FLOW FAN LEFT
41	CROSS FLOW FAN BEARING
42	EVAPORATOR
45	MOUNTING BRACKET
