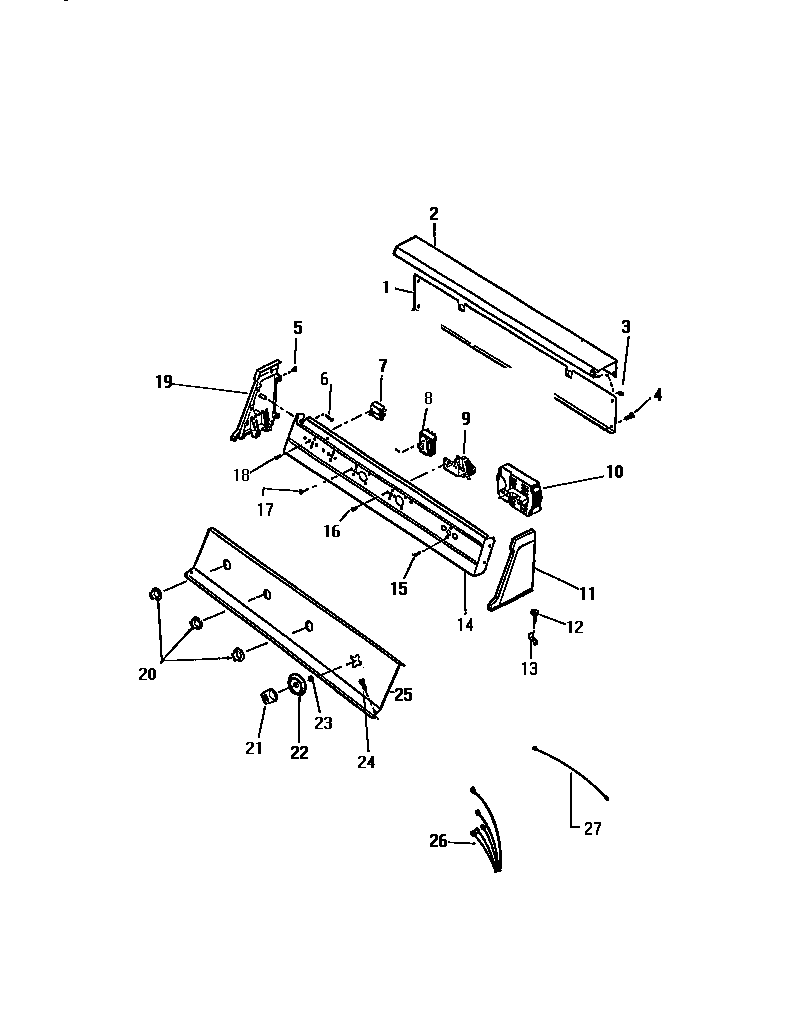

AW500C0V 02 – CONSOLE & CONTROLS

Products

Position	Product
*39880	WCI F136345-000
*39885	TOUCH-UP SPRAY PAINT, AVOCADO (6 OZ)
*39881	TIE-HARN TOP PNL (NON-ILLUSTRATED)
1	WCI F139230-026
2	COVER-TOP
3	WCI F139635-000
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI F139577-000
6	131205100 Frigidaire Screw
7	SWITCH
9	WCI F139791-000
10	WCI F140431-000
11	WCI F139719-000
12	131243800 Frigidaire Screw
13	WCI F079171-000
14	BRACKET, MTG.
15	WCI F060796-000
16	131168200 Frigidaire Dryer Screw
18	SCREW SWITCH TO BRACKET ( 2 )
19	WCI F139719-100
20	ROTARY KNOB (2)
21	WCI F141025-000
22	TIMER POINTER
23	WCI F078212-000
24	WCI F140203-000
25	WCI F141103-100
26	HARN.
27	HARNESS-GROUND
