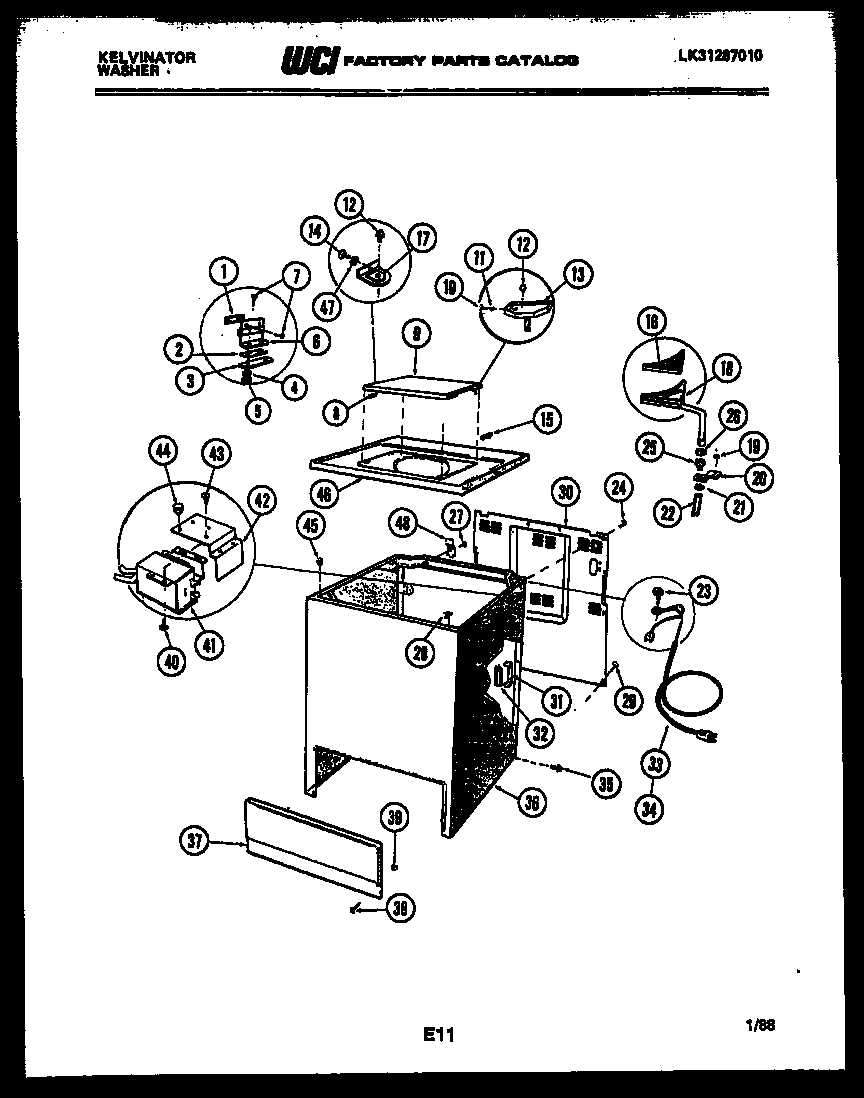

AW700C1D 02 – CABINET PARTS

Products

Position	Product
1	WCI F060509-000
2	WCI F060508-000
3	SPACER
4	WCI F061076-000
5	WCI F060582-000
6	WCI F066964-000
7	SCREW ( 4 )
8	WCI F079149-000
9	WCI F141006-039
12	WCI F141003-000
13	WCI F141001-000
14	5304455649 Frigidaire Refrigerator Screw
15	WCI F064572-000
16	FUNNEL INSERT
17	BRACKET-LID
18	WCI F064535-000
19	WCI F066409-000
20	WCI F077273-100
21	WCI F063460-001
22	TUBE, BLEACH DISPENSER TO TRAP
23	SEMS SCREW, WATER VALVE MOUNTING (2)
25	WCI F077272-000
26	154611101 Frigidaire Dishwasher Clamp
27	WCI F132080-000
28	WCI F130448-000
29	5303015671 Frigidaire Bracket Termination Screw
30	WCI F139218-026
31	BRACKET, CAPACITOR
32	WCI F140443-000
33	CORD SERVICE
34	5303209428 Frigidaire Serv.Cord Bushing
35	131205500 Frigidaire Screw
37	WCI F078316-039
38	WCI F136470-000
39	WCI F079109-000
40	SEMS SCREW (2)
41	WCI F140914-000
42	WCI F141010-000
43	131168200 Frigidaire Dryer Screw
45	WCI F001345-000
46	TOP PANEL, ALMOND
47	WASHER, NYLON (4)
48	WCI F131174-000
