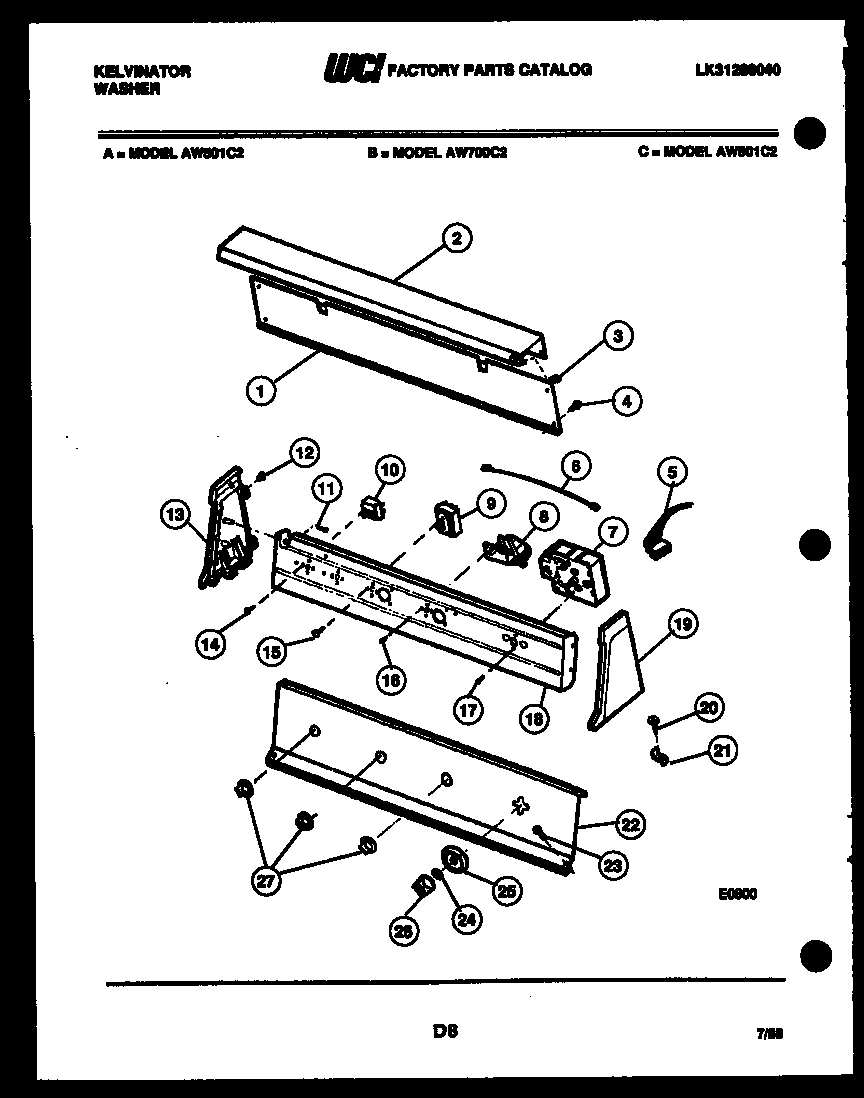

AW700C2W 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI F139230-026
2	COVER-TOP
3	WCI F139635-000
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3018965
6	HARNESS-GROUND
7	HSG-DOOR LATCH
8	WCI F139791-000
10	SWITCH
11	131205100 Frigidaire Screw
12	WCI F139577-000
13	WCI F139719-100
14	SCREW SWITCH TO BRACKET ( 2 )
16	131168200 Frigidaire Dryer Screw
17	WCI F060796-000
18	BRACKET, MTG.
19	WCI F139719-000
20	131243800 Frigidaire Screw
21	WCI F079171-000
22	WCI F141103-100
23	WCI F140203-000
24	WCI F078212-000
25	TIMER POINTER
26	WCI F141025-000
27	ROTARY KNOB (2)
