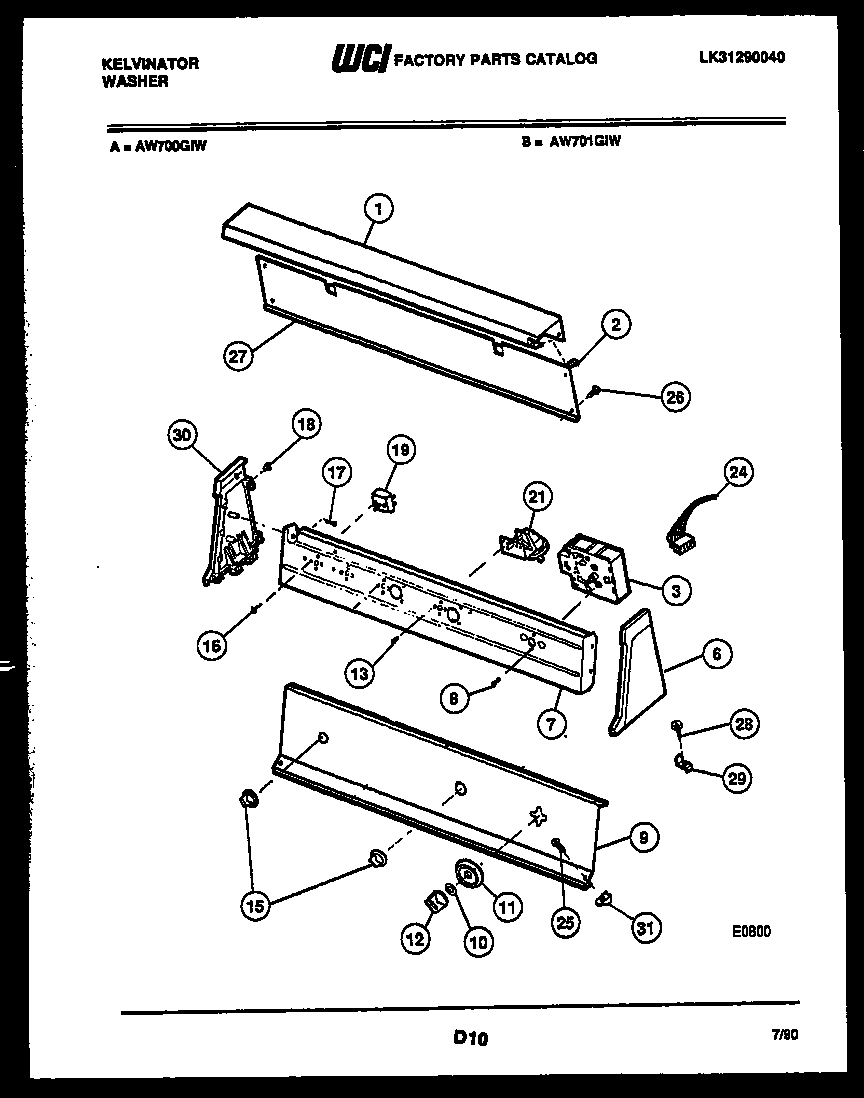

AW700G1D 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201609
2	WCI 5308010825
3	WCI 5303208804
6	WCI 3206005
7	WCI 3205822
8	SCREW (2)
9	WCI 5303210921
10	Spacer,washer ,timer shaft
11	POINTER-TIMER
12	WCI 5303207073
13	131168200 Frigidaire Dryer Screw
15	KNOB-ROTARY (2)
16	WCI 3161259
17	131205100 Frigidaire Screw
18	WCI 5303210923
19	WCI 5308008463
21	WCI 5303210924
24	WCI 5303210330
25	WCI 3205820
26	5303015671 Frigidaire Bracket Termination Screw
27	WCI 3201349
28	131243800 Frigidaire Screw
29	WCI 5379171000
30	WCI 3206007
31	CLIP
