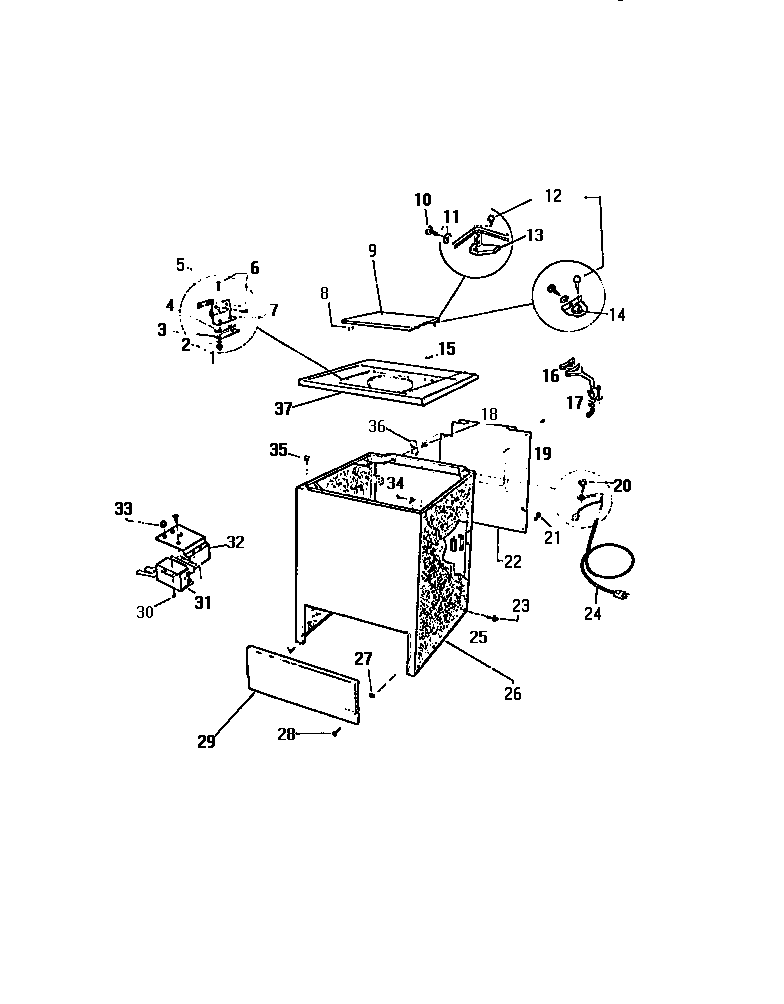

AW801C0W 03 – CABINET, TOP PANEL

Products

Position	Product
*39887	WCI F064535-000
*39888	WCI F066409-000
*39886	FUNNEL INSERT
*39890	WCI F063460-001
*39889	WCI F077273-100
*39891	TUBE, BLEACH DISPENSER TO TRAP
1	WCI F060582-000
2	WCI F061076-000
3	SPACER
4	WCI F060508-000
5	WCI F060509-000
6	SCREW ( 4 )
7	WCI F066964-000
8	WCI F079149-000
9	WCI F141006-032
10	5304455649 Frigidaire Refrigerator Screw
11	WASHER, NYLON (4)
12	WCI F141003-000
13	WCI F141001-000
14	BRACKET-LID
15	WCI F064572-000
16	154611101 Frigidaire Dishwasher Clamp
17	WCI F077172-000
18	WCI F132080-000
20	SEMS SCREW, WATER VALVE MOUNTING (2)
21	5303015671 Frigidaire Bracket Termination Screw
22A	BRACKET, CAPACITOR
22	WCI F139218-026
23	WCI F140443-000
24A	5303209428 Frigidaire Serv.Cord Bushing
24	CORD SERVICE
25	131205500 Frigidaire Screw
26	WCI F140749-032
27	WCI F079109-000
28	WCI F136470-000
29	WCI F078316-032
30	SEMS SCREW (2)
31	WCI F140714-000
32	WCI F141010-000
34	WCI F130448-000
35	WCI F001345-000
36	WCI F131174-000
37	WCI F141004-032
