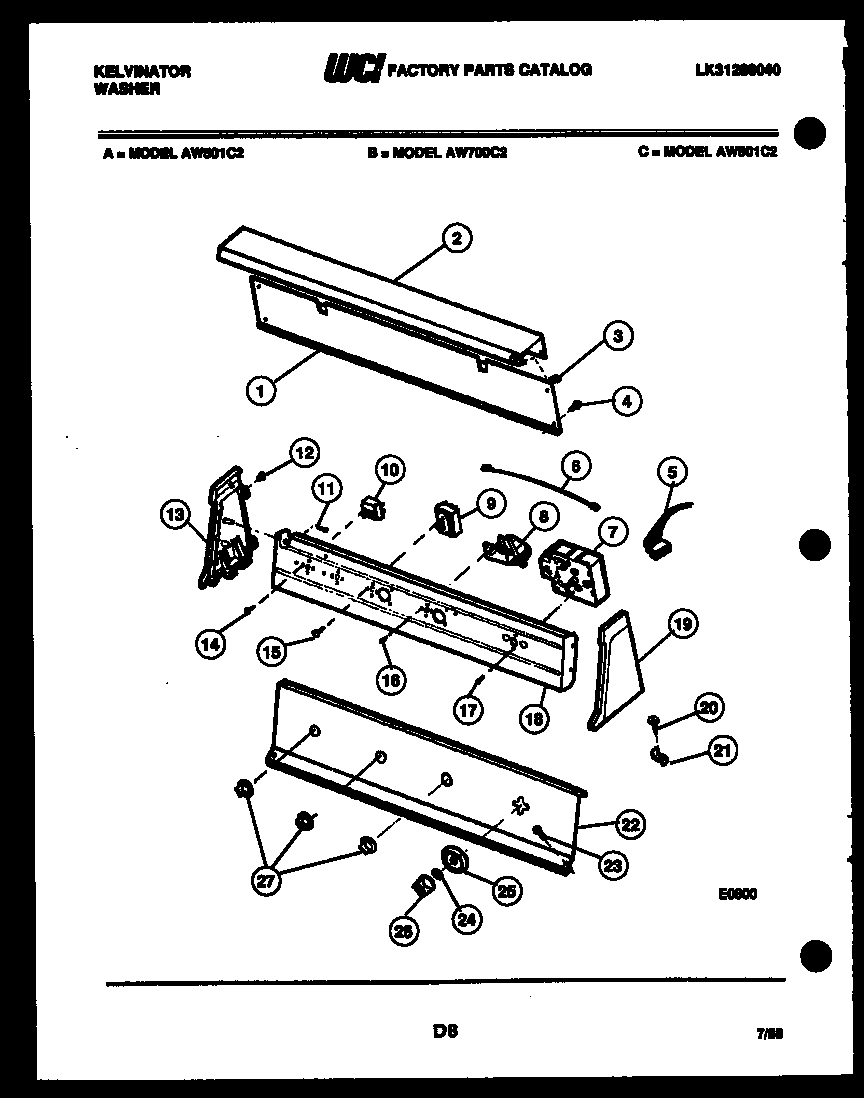

AW801C2D 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI F139230-026
2	COVER-TOP
3	WCI F139635-000
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3200308
6	HARNESS-GROUND
7	WCI 3015648
8	WCI F139791-000
9	WCI F137247-000
10	WCI F137239-000
11	131205100 Frigidaire Screw
12	WCI F139577-000
13	WCI F139719-100
15	SCREW SWITCH TO BRACKET ( 2 )
16	131168200 Frigidaire Dryer Screw
17	WCI F060796-000
18	BRACKET, MTG.
19	WCI F139719-000
20	131243800 Frigidaire Screw
21	WCI F079171-000
22	WCI F141105-100
23	WCI F140203-000
24	WCI F078212-000
25	TIMER POINTER
26	WCI F141025-000
27	ROTARY KNOB (2)
