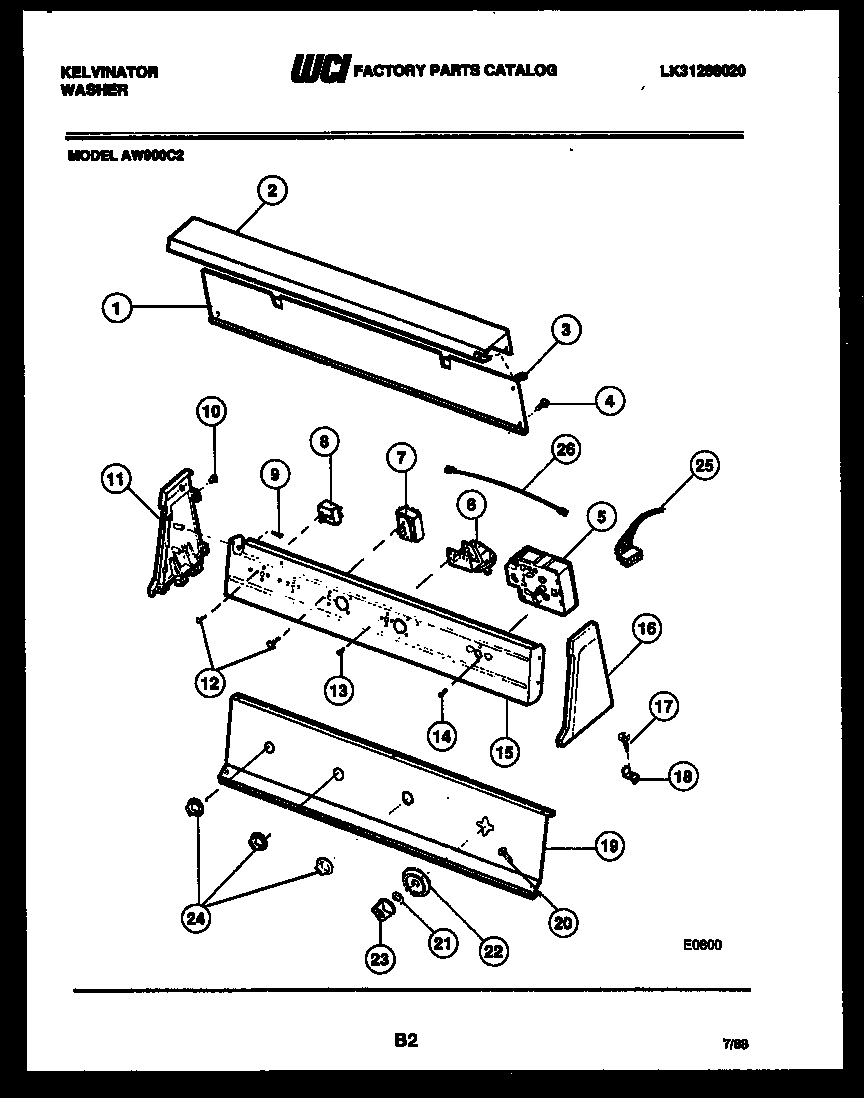

AW900C2W 02 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*59431	WCI F136345-000
*59433	TIE-HARN TOP PNL (NON-ILLUSTRATED)
1	WCI F139230-026
2	COVER-TOP
3	WCI F139635-000
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3015648
6	WCI F139791-000
7	WCI F137247-000
8	SWITCH
9	131205100 Frigidaire Screw
10	WCI F139577-000
11	WCI F139719-100
12	SCREW SWITCH TO BRACKET ( 2 )
13	131168200 Frigidaire Dryer Screw
14	WCI F060796-000
15	BRACKET, MTG.
16	WCI F139719-000
17	131243800 Frigidaire Screw
18	WCI F079171-000
19	WCI F141108-100
20	WCI F140203-000
21	WCI F078212-000
22	TIMER POINTER
23	WCI F141025-000
24	ROTARY KNOB (2)
25	WCI 3200308
26	HARNESS-GROUND
