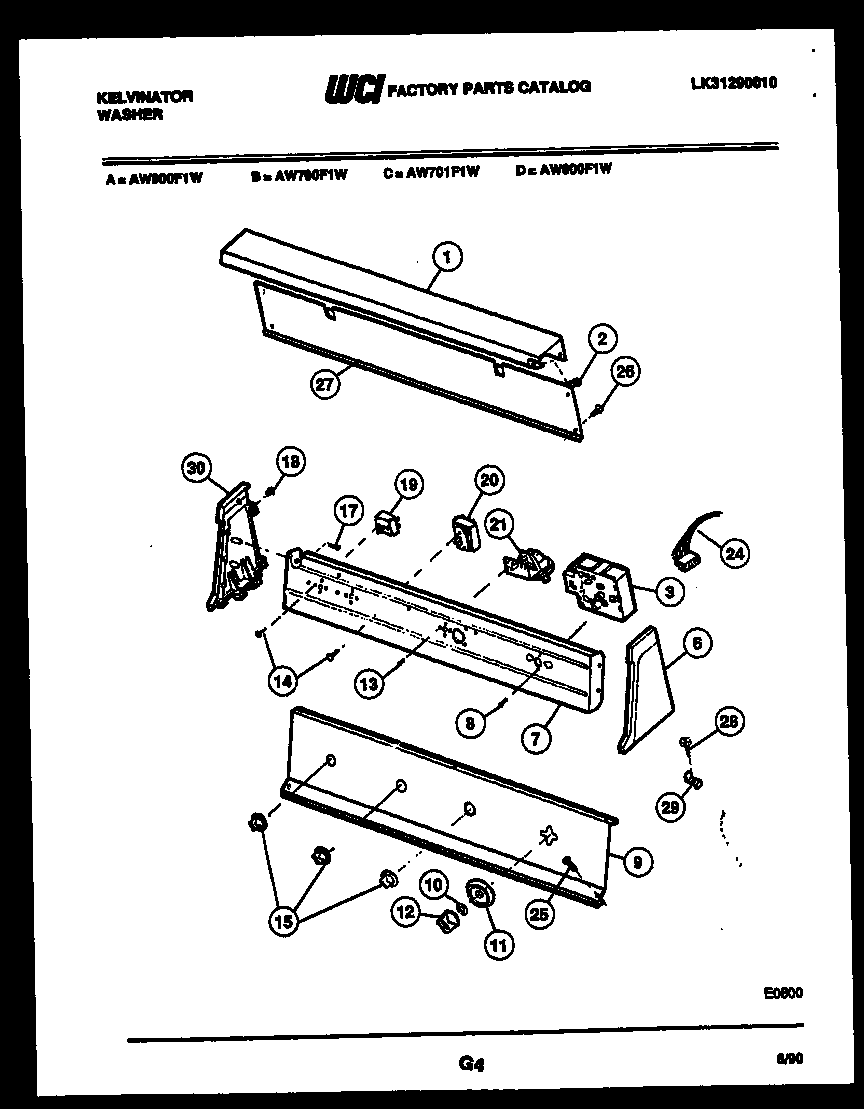

AW900F1W 03 – CONSOLE AND CONTROL PARTS

AW900F1W 03 – CONSOLE AND CONTROL PARTS

Written by

in

AW900F1W 03 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1WCI 5303207074
2WCI 08010825
3WCI 3015648
6WCI 5303206914
7WCI 08015503
8SCREW (2)
9WCI F141108-100
10WCI 08015493
11WCI 08015529
12WCI 5303207073
13131168200 Frigidaire Dryer Screw
14WCI 3161259
15WCI 08008462
17131205100 Frigidaire Screw
18WCI 08010830
19WCI 08008463
20WCI 5303206895
21WCI 08010860
24BWCI 08010837
24AWCI 3161276
24WCI 3200308
25WCI 08011318
265303015671 Frigidaire Bracket Termination Screw
27WCI 08010824
28131243800 Frigidaire Screw
29WCI 3161198
30WCI 5303206915
