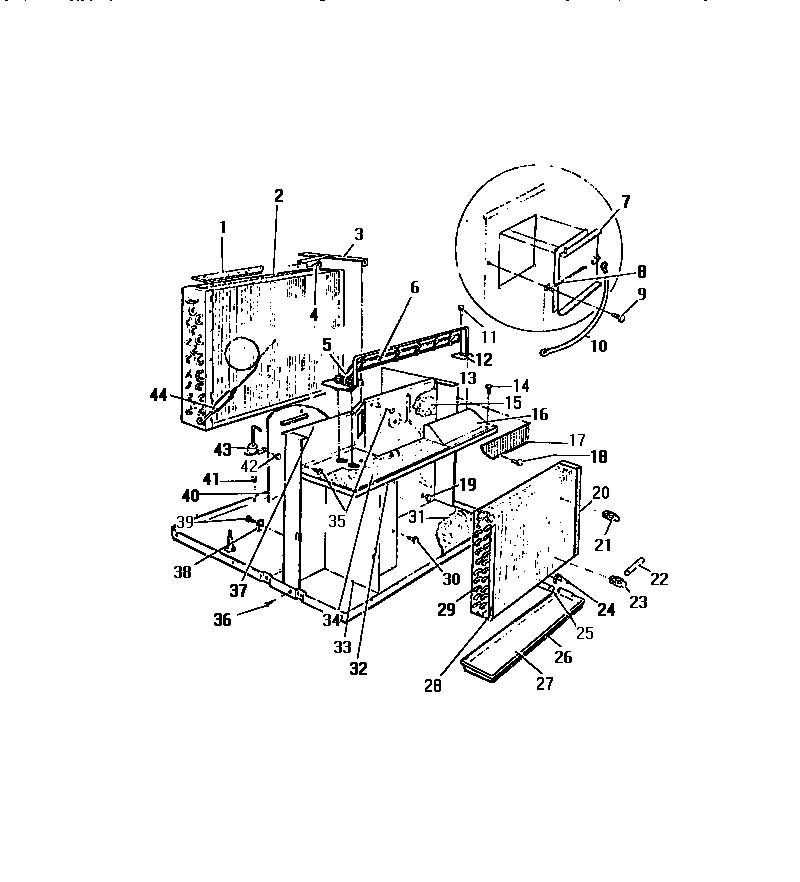

AW938UD2 32 – EVAPORATOR, CONDENSER (`B` CABINET

Products

PositionProduct
*23144WCI 8016102
*23141WCI 8013698
*23143WCI 8012971
1WCI 8007704
1ACONDENSER, TOP
2WCI 8014108
3WCI 8007696
7WCI 8006929
8WCI 8003049
10CABLE-VENT DOOR
11SCREW, GROUND TO CONTROL PANEL
13WCI 8007689
15INSULATION-REAR
18SCREW (2)
19WCI 8007565
20SEAL, EVAPORATOR BRACKET, WRAPPER
22INSULATOR-TUBE
23CLIP-CAP. TUBE
24WCI 8009027
25WCI 8009022
27TRAY
28SEAL, EVAPORATOR BRACKET, CONTACT TUBE
29WCI 8014111
31WCI 8007537
32PARTITION-HORIZONTAL
33DIVIDER-VERTICAL
35WCI 8002951
36SCREWS
37WCI 8007688
38WCI 8009025
39SCREW (4)
40WCI 8007703
41CLIP-CONDENSER
42WCI 8007702
44DRIER
