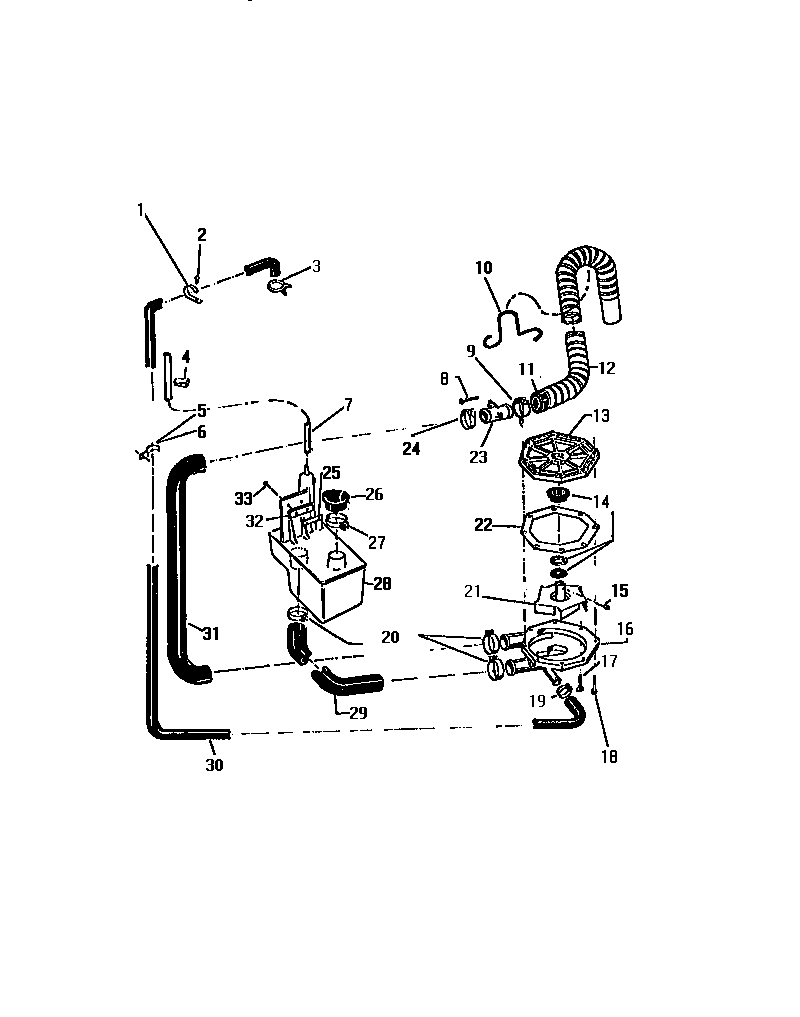

AWC340A0D 05 – PUMP, HOSES

Products

Position	Product
1	WCI F130493-000
2	5303015671 Frigidaire Bracket Termination Screw
3	WCI F063430-006
4	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
6	CLAMP, DRAIN HOSE TO TUB
7	5304401845 Frigidaire Tube Pressure
8	WCI F131276-000
9	WCI F064154-015
10	WCI F131968-000
11	WCI F132251-000
12	WCI F137465-000
13	WCI F077352-000
14	WCI F076143-000
15	IMPELLER SCREW
16	HOUSING, PUMP
17	SCREW, PUMP MOUNTING (4)
18	5304401796 Frigidaire Screws
19	154611101 Frigidaire Dishwasher Clamp
20	WCI F064154-012
21	WCI F079428-000
22	WCI F077354-000
23	WCI F130441-000
24	WCI F064154-011
25	WCI F139592-000
26A	ADHESIVE, 1 OUNCE
26	GROMMET (USE F133016000 PRIMER ADHESIVE AND 08006576 ADH
27	CLAMP
28	WCI F077276-000
29	WCI F139191-000
30	WCI F078854-000
31	WCI F079173-000
32	WCI F140324-000
33	WCI F136471-000
