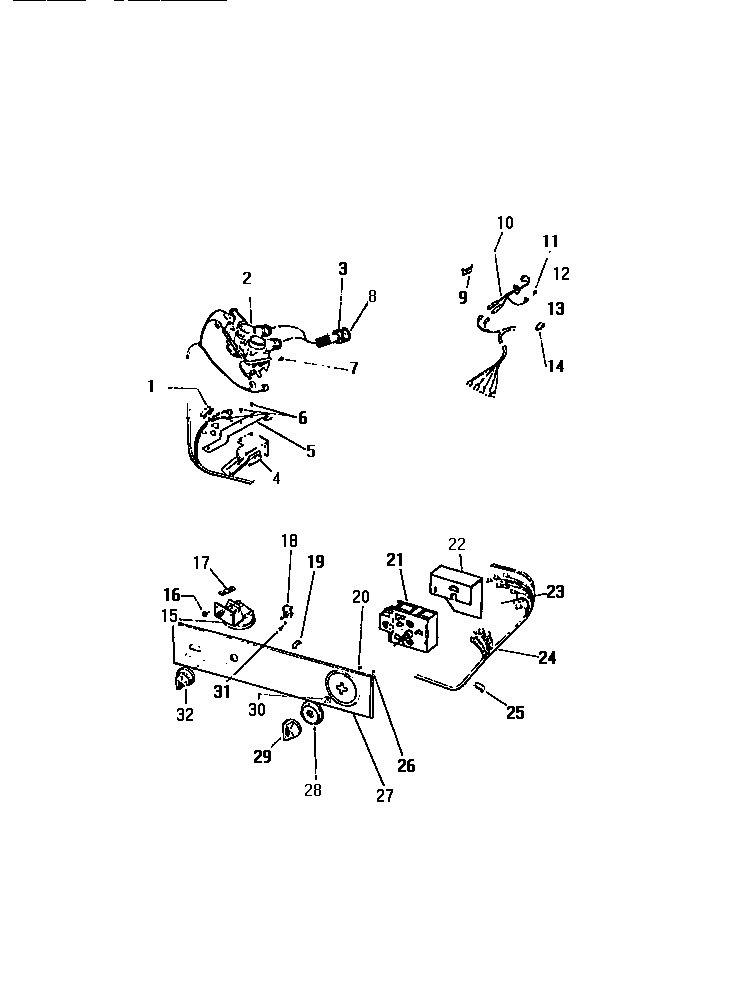

AWC340A1T 02 – CONSOLE & CONTROLS

Products

Position	Product
*31161	WCI F076138011
*31160	WCI F076138015
2	134190200 Frigidaire Washer Water Valve
3	5303912532 Frigidaire Hose Inlet 60"
4	WCI F138862000
5	WCI F138861000
6	218359202 Frigidaire Refrigerator Screw
7	WCI F141175-000
8	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
9	WCI F077094000
10	WCI F140485-000
11	134154100 Frigidaire Screw 10-32 x 0.375 Co
14	WCI F002751000
15	WCI F078342100
16	131243800 Frigidaire Screw
17	SHIELD, TERMINAL
18	WATER TEMPERATURE SWITCH
19	WCI F131347000
20	WCI F060796-000
21	WCI F140432-000
22	WCI F140881-000
23	WCI F068832016
24	WCI F140602-000
25	CLIP, HARNESS TO RH SIDE PANEL (3)
26	WCI F073635000
27	WCI F140556-000
28	TIMER POINTER
29	WCI F141025-000
30	WCI F078212-100
31	WCI F135021000
32	ROTARY KNOB (2)
