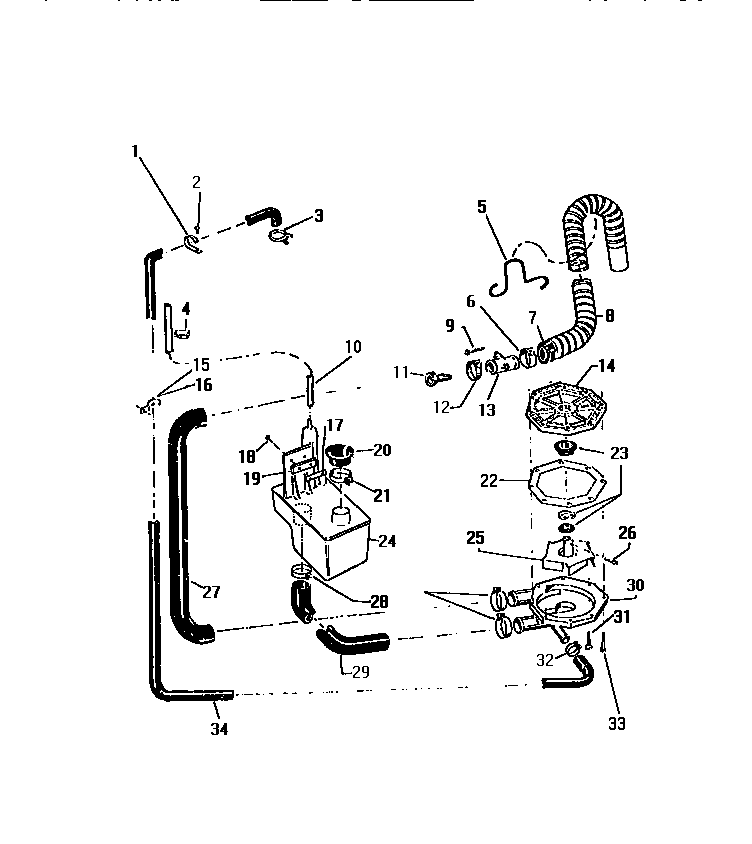

AWC340A1T 05 – PUMP, HOSES

Products

Position	Product
1	WCI F130493-000
2	5303015671 Frigidaire Bracket Termination Screw
4	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
5	WCI F131968-000
6	WCI F064154-015
7	WCI F132251-000
8	WCI F137465-000
9	WCI F131276-000
10	5304401845 Frigidaire Tube Pressure
11	WCI F141123-000
12	WCI F064154-011
13	WCI F141124-000
14	WCI F077352-000
16	CLAMP, DRAIN HOSE TO TUB
17	WCI F139592-000
18	WCI F136471-000
19	WCI F140324-000
20	GROMMET (USE F133016000 PRIMER ADHESIVE AND 08006576 ADH
20A	ADHESIVE, 1 OUNCE
21	CLAMP
22	WCI F077354-000
23	WCI F076143-000
24	WCI F077276-000
25	WCI F079428-000
26	IMPELLER SCREW
27	WCI F141126-000
28	WCI F140887-027
29	WCI F139191-000
30	HOUSING, PUMP
31	SCREW, PUMP MOUNTING (4)
32	WCI F140887-021
33	5304401796 Frigidaire Screws
34	WCI F141135-000
34A	5304464772 Frigidaire Refrigerator Wire Tie
