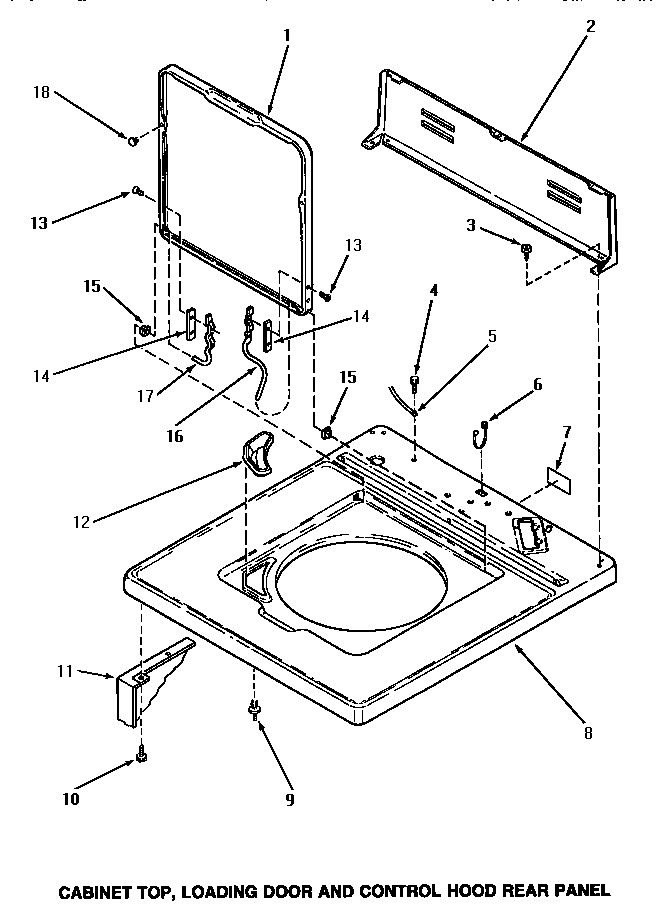

AWM230 05 – CAB TOP/LOADING DR & CTRL HOOD REAR PAN

Products

Position	Product
1	MAY 33541W
1	MAY 33541L
1	MAY 33541H
2	MAY 33619
3	WP90767 Whirlpool Screw
4	MAY 52909
6	MAY 21903
7	MAY 24903
8	MAY 33451L
8	MAY 33451W
8	MAY 33451H
9	MAY 56534
10	MAY Y31644
11	SEE NOTE GROUND WIRE, GREEN
12	MAY 33516
13	MAY 34337
14	34338 Speed Queen Hinge Gasket
15	MAY 33446
16	MAY 34325
17	MAY 34326
18	MAY 21685
