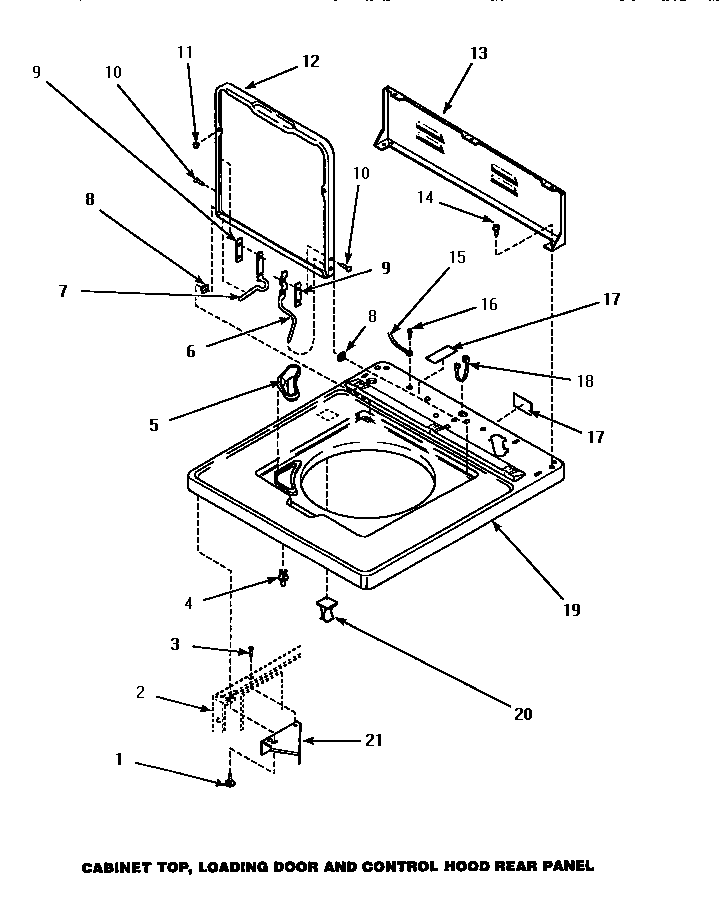

AWM270W2 07 – CAB TOP/LOADING DR & CTRL HOOD REAR PAN

Written by

Products

Position	Product
1	MAY Y31644
3	MAY 36035
4	MAY 56534
5	MAY 34776
6	MAY 36437
7	36513 Speed Queen Left Hand Lid Hinge
8	MAY 33446
9	34338 Speed Queen Hinge Gasket
10	MAY 34337
11	MAY 21685
12	MAY 33541WP
13	MAY 34903
14	WP90767 Whirlpool Screw
15	SEE NOTE GROUND WIRE, GREEN
16	MAY 52909
17	MAY 24903
18	MAY 21903
19	MAY 34902WP
20	MAY 36519
21	MAY 36034
