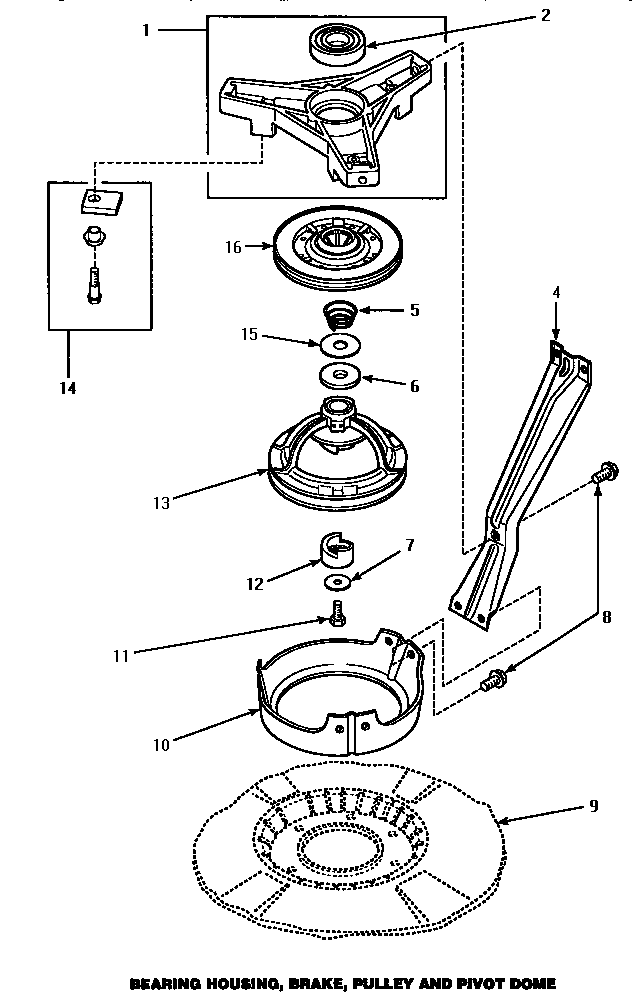

AWM290L 03 – BRG HSG/BRAKE/PULLEY & PIVOT DOME

Written by

Products

Position	Product
NI	MAY 26594P
1	MAY 35746
2	MAY 28944R
4	MAY 34792
5	MAY 33435
6	MAY 27015
7	MAY 26509
8	MAY 35369
9	SEE NOTE GROUND WIRE, GREEN
10	MAY 34470
11	MAY 27220
12	MAY 27018
13	34923 Speed Queen Assembly,Pulley-SPIN & AGITATE
14	MAY 548P3
15	MAY 35535
16	MAY 31961P
