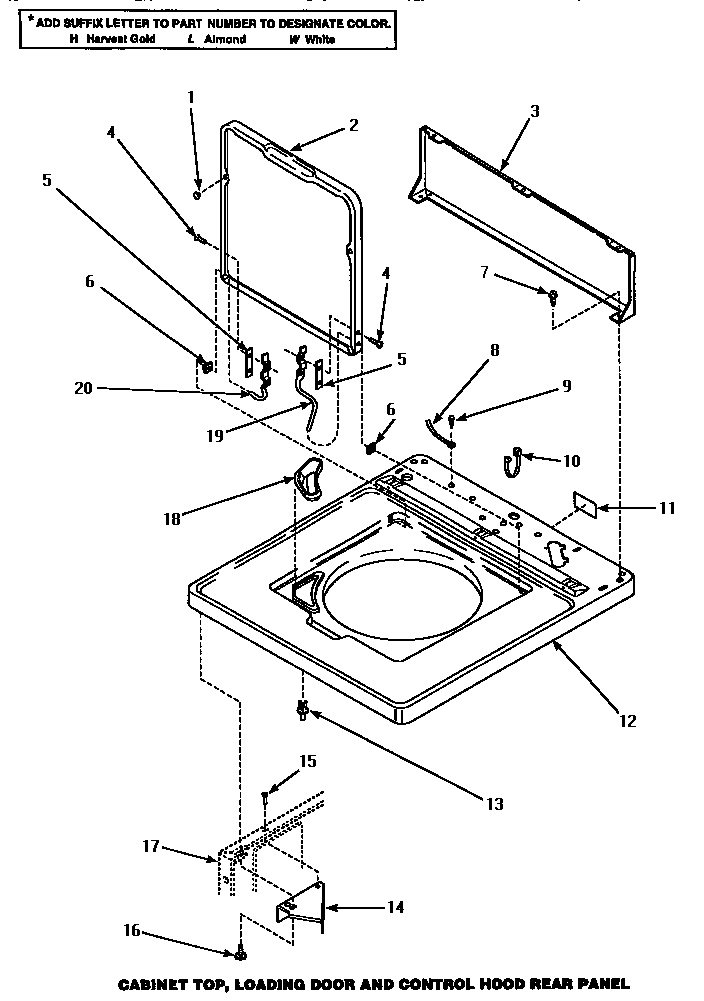

AWM290W 04 – CAB TOP/LOADING DR & CTRL HOOD REAR PAN

AWM290W 04 – CAB TOP/LOADING DR & CTRL HOOD REAR PAN

Written by

in

AWM290W 04 – CAB TOP/LOADING DR & CTRL HOOD REAR PAN

Products

PositionProduct
1MAY 21685
2MAY 33541HP
2MAY 33541WP
2MAY 33541LP
3MAY 34903
4MAY 34337
534338 Speed Queen Hinge Gasket
6MAY 33446
7WP90767 Whirlpool Screw
9MAY 52909
10MAY 21903
11MAY 24903
12MAY 34902HP
12MAY 34902WP
12MAY 34902LP
13MAY 56534
14MAY 36034
15MAY 36035
16MAY Y31644
17SEE NOTE GROUND WIRE, GREEN
18MAY 34776
19MAY 36437
20MAY 36438
