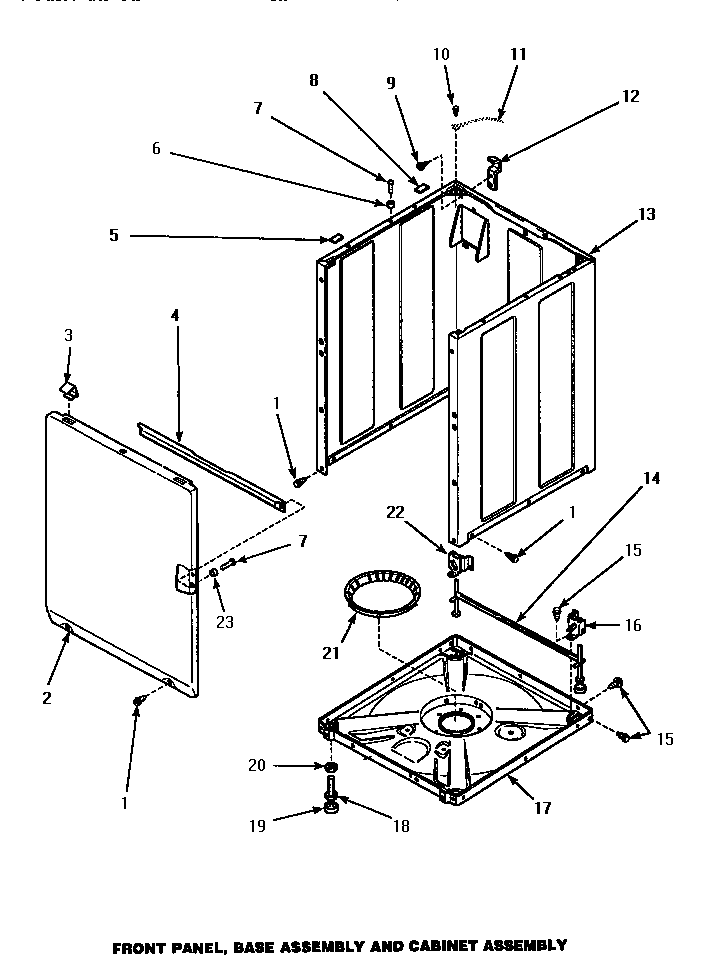

AWM372W2 07 – FRONT PANEL, BASE ASSY & CABINET ASSY

AWM372W2 07 – FRONT PANEL, BASE ASSY & CABINET ASSY

Written by

in

AWM372W2 07 – FRONT PANEL, BASE ASSY & CABINET ASSY

Products

PositionProduct
1MAY 27196
2MAY 34656WP
3MAY 35865
4MAY Y35097
5MAY Y56128
6MAY 56079
7MAY 32671
8MAY 36226
9MAY 34499
10WP90767 Whirlpool Screw
11SEE NOTE GROUND WIRE, GREEN
12MAY Y27103
13MAY 34475WP
14MAY 34443
15MAY 35148
16MAY 36036
17MAY 36599P
17MAY 34434P
18MAY Y34319
19MAY 34318
20MAY Y21899
21MAY 36108
2236037 Speed Queen Left SLL Bracket
23MAY 28102
