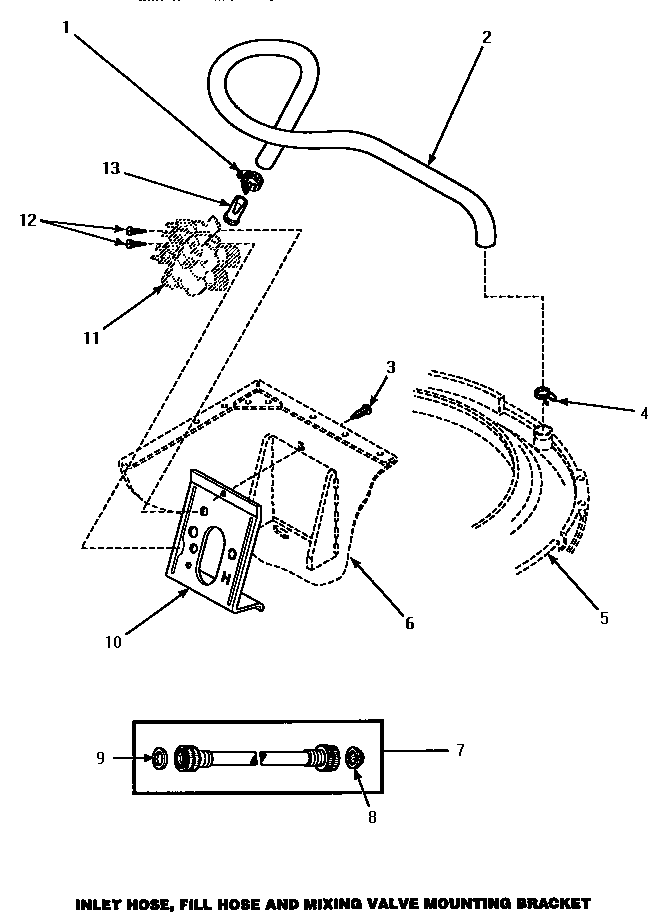

AWM392L 09 – INLET/FILL HOSE & MIXING VLV MTG BRKT
Written by
in
AWM392L 09 – INLET/FILL HOSE & MIXING VLV MTG BRKT
Products
| Position | Product |
|---|---|
| 1 | MAY 27643 |
| 2 | MAY 35874 |
| 3 | MAY 33562 |
| 4 | MAY 29210 |
| 7 | MAY 28330P |
| 8 | WP22002960 Whirlpool Washer Inlet Strainer |
| 9 | MAY 20290 |
| 10 | MAY 34972 |
| 11 | SEE NOTE GROUND WIRE, GREEN |
| 12 | MAY 56392 |
| 13 | MAY 34500 |
