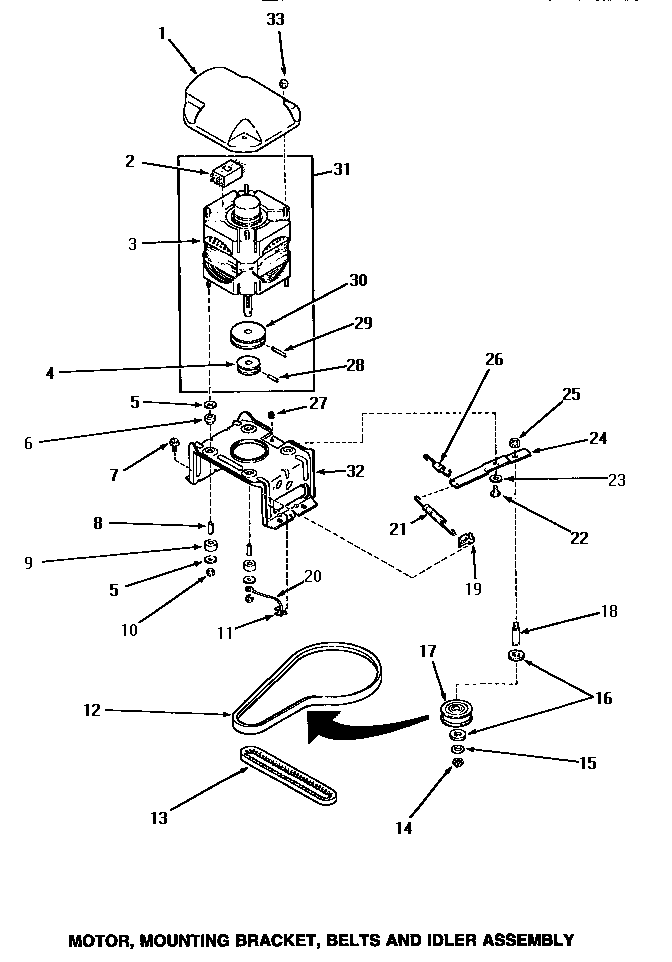

AWM452 15 – MOTOR, MTG BRACKET, BELTS & IDLER ASSY

AWM452 15 – MOTOR, MTG BRACKET, BELTS & IDLER ASSY

Written by

in

AWM452 15 – MOTOR, MTG BRACKET, BELTS & IDLER ASSY

Products

Position	Product
NI	MAY 258P3
NI	MAY 20605
1	MAY 27136
2	MAY 38097A
2	MAY 30895A
2	MAY 24139
2	MAY 24140
3	MAY 30895
4	27104 Speed Queen Motor Pulley
5	MAY 03888
6	MAY 01952A
7	MAY Y31645
8	MAY 27181
9	MAY 01953
10	MAY 23604
11	MAY Y00161
12	MAY 28808
13	MAY 27155
14	MAY 23748
15	MAY 52549
16	MAY Y29443
17	MAY 28800
18	MAY 28802
19	MAY 28849
20	SEE NOTE GROUND WIRE, GREEN
21	MAY 28807
22	MAY 27229
23	MAY 81392
24	MAY 31054
25	MAY 28803
26	MAY 30620
27	MAY 52566
28	MAY 10416
29	MAY 23750
30	MAY 27171
31	MAY 27179
32	MAY 28791
33	MAY 27201
