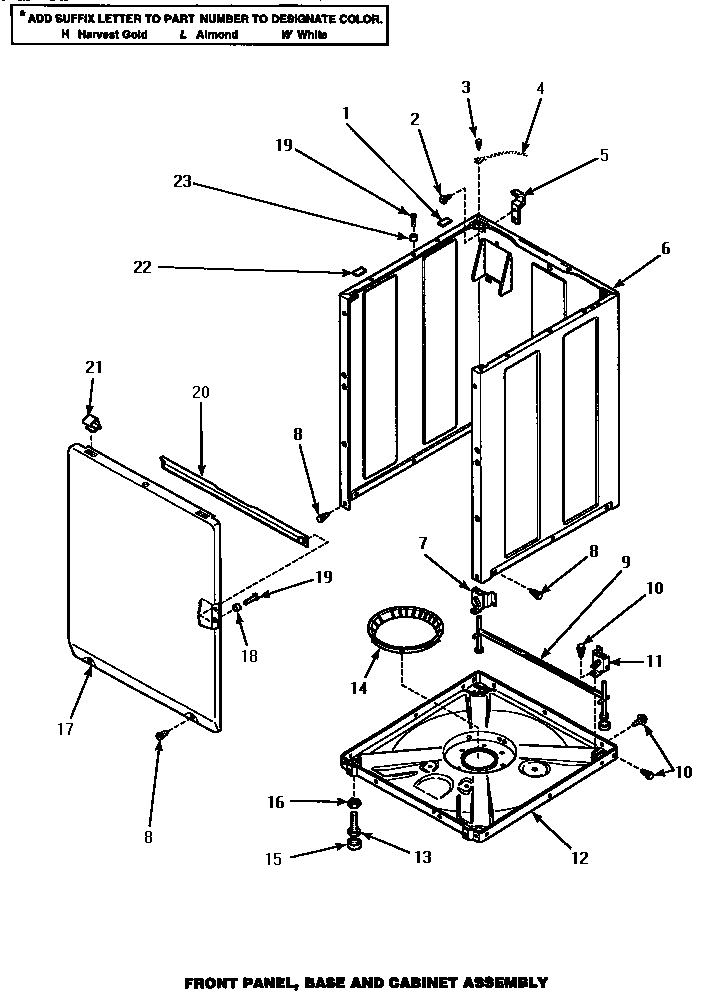

AWM573W 07 – FRONT PANEL, BASE & CABINET ASSY

Products

Position	Product
1	MAY 36226
2	MAY 34499
3	MAY 56392
4	SEE NOTE GROUND WIRE, GREEN
5	MAY Y27103
6	MAY 34475WP
6	MAY 34475HP
6	MAY 34475LP
7	36037 Speed Queen Left SLL Bracket
8	MAY 27196
9	MAY 34443
10	MAY 35148
11	MAY 36036
12	MAY 34434P
13	MAY Y34319
14	MAY 36108
15	MAY 34318
16	MAY Y21899
17	MAY 34656LP
17	MAY 34656HP
17	MAY 34656WP
18	MAY 28102
19	MAY 32671
20	MAY Y35097
21	MAY 35865
22	MAY Y56128
23	MAY 56079
