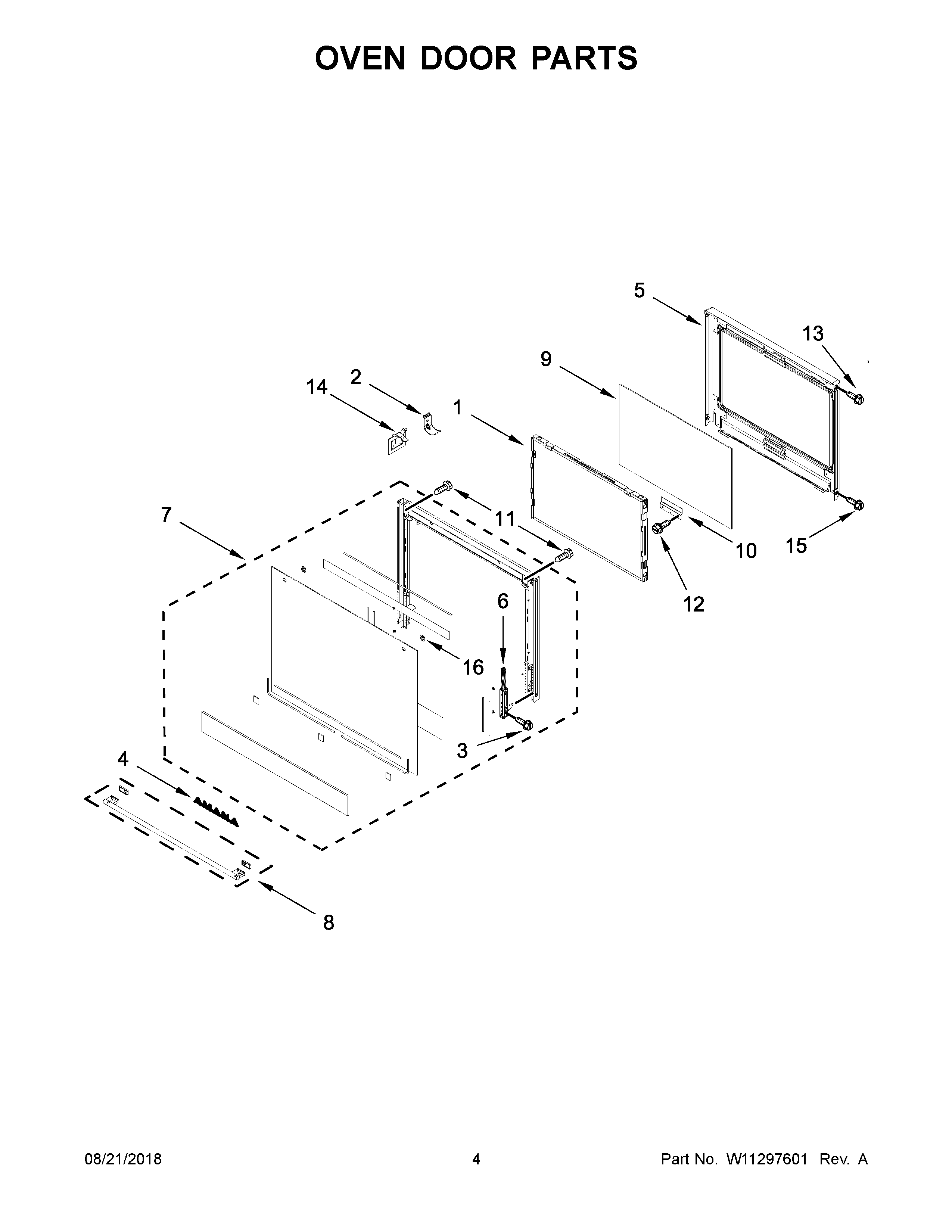

AWO6313SFB02 03 – OVEN DOOR PARTS

AWO6313SFB02 03 – OVEN DOOR PARTS

Written by

in

AWO6313SFB02 03 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347596
2MAY W10284285
3SCREW
4BBADGE (STAINLESS)
4ABADGE (WHITE)
4BADGE (BLACK)
5MAY W10709147
6MAY W10639069
7BMAY W10832251
7MAY W10832252
7AMAY W10832253
8MAY W10118431
8BHANDLE, DOOR (STAINLESS)
8AMAY W10118430
9GLASS, INNER
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13SCREW WITH WASHER
14MAY W10653954
15MAY 7101P635-60
16WASHER, DOOR
