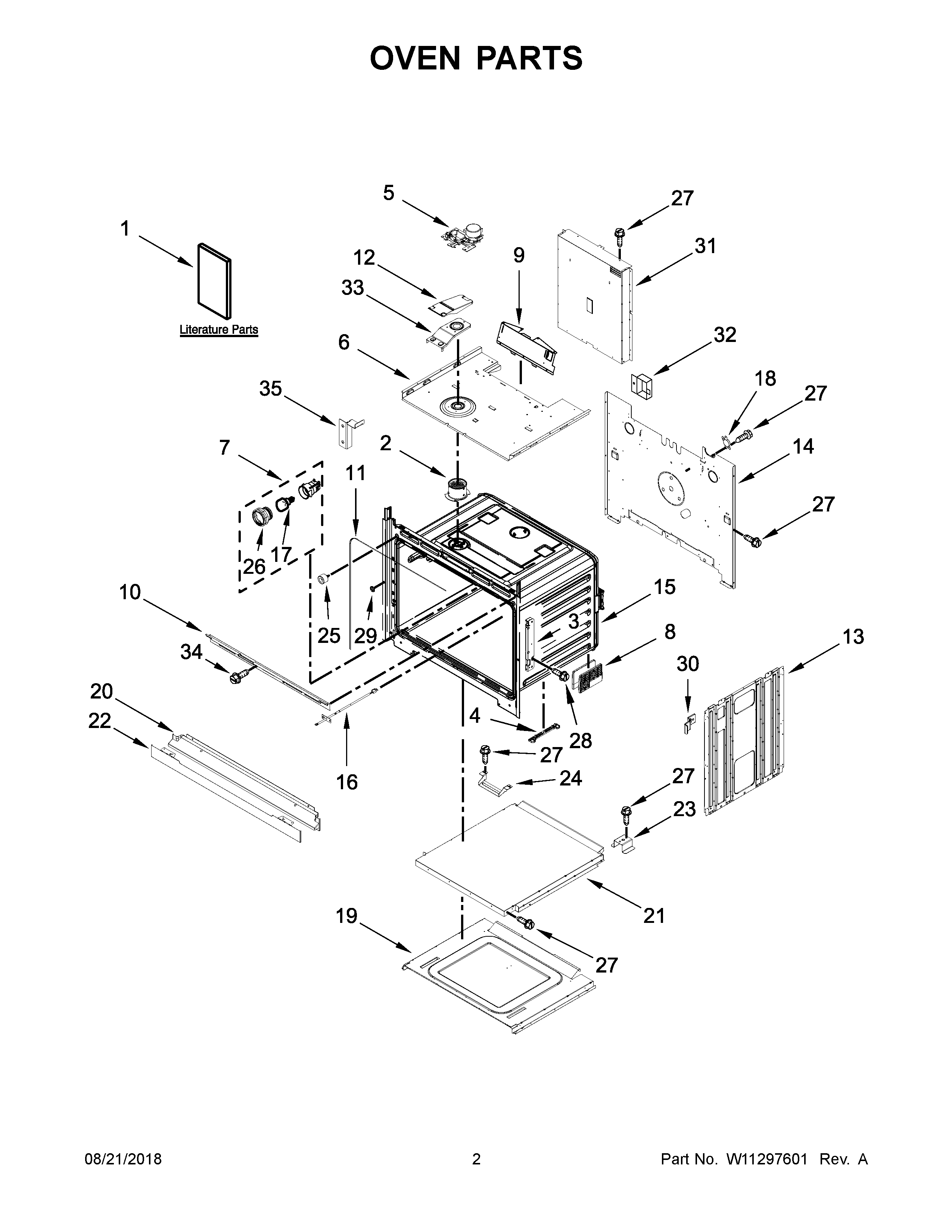

AWO6313SFS02 02 – OVEN PARTS

Products

Position	Product
NI	BAG, HARDWARE
NI	HARNESS, MAIN
NI	HARNESS, DOOR LATCH
NI	MAY W10282944
NI	STRAP, LEAD GROUND
NI	BRACKET, HARNESS
NI	CLIP, HARNESS
NI	INSULATION, WRAP
NI	HARNESS, EOL (MRC)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 4450800
NI	CLAMP, CONDUIT
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1C	MAY W10796080
1B	MAY W10785116
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	MAY W10734063
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	VENT, TOP 30"
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	BASE, CHASSIS
20A	MAY W10351279
20	MAY W10327373
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10254050
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33	BASE, VENT EXHAUST
34	MAY 7101P427-60
35A	BRACKET, SIDE COVER (RIGHT)
35	BRACKET, SIDE COVER (LEFT)
