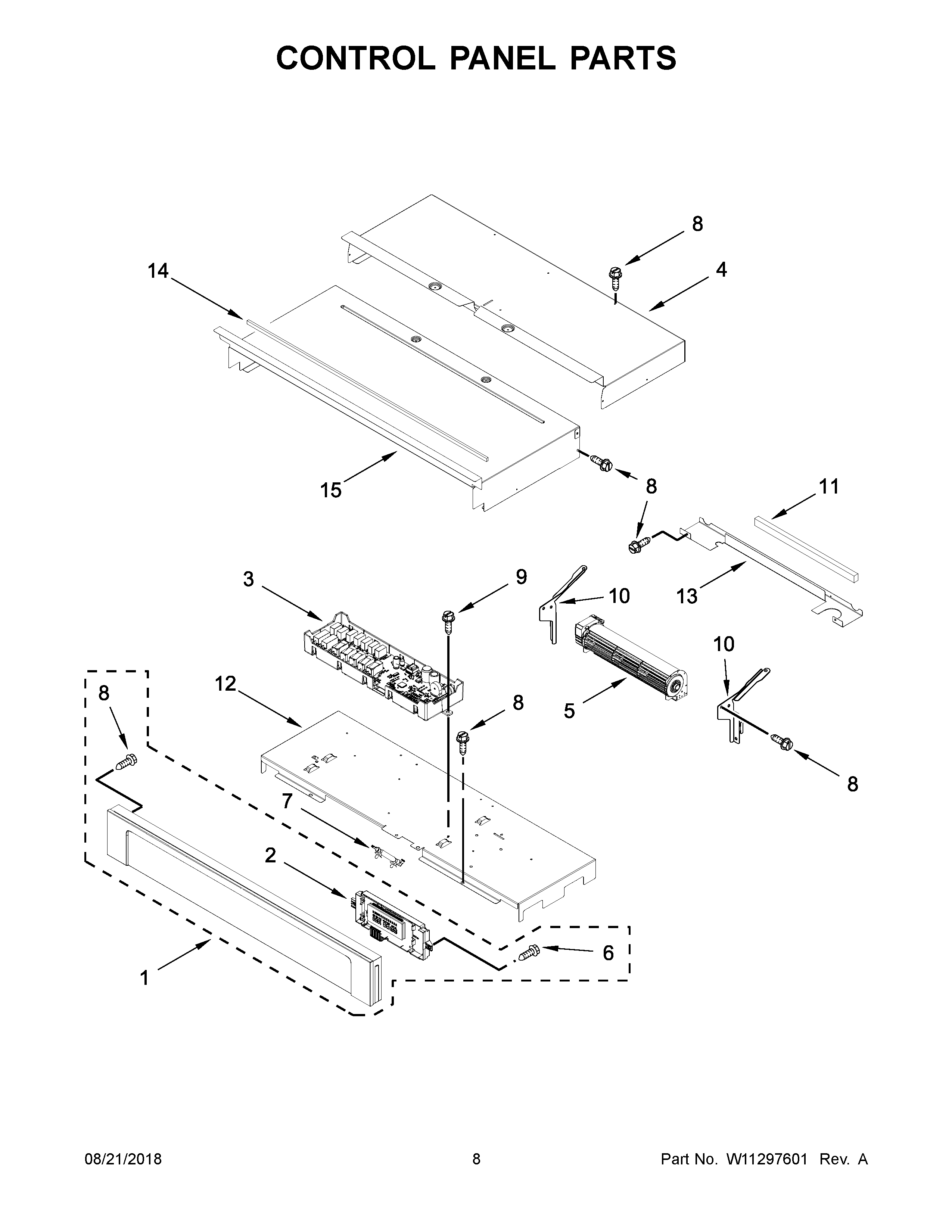

AWO6313SFS02 05 – CONTROL PANEL PARTS

AWO6313SFS02 05 – CONTROL PANEL PARTS

Written by

in

AWO6313SFS02 05 – CONTROL PANEL PARTS

Products

PositionProduct
1BMAY W10830871
1AMAY W10830869
1MAY W10830870
2INTERFACE (MAXWELL), USER BOARD
3ASSEMBLY, MAXWELL CONTROL
4CHASSIS, COVER TOP BACK 30"
5BLOWER
6MAY 7101P403-60
7MAY W10545255
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12MAY W10347650
13CHASSIS, BACK DIVIDER
14GASKET, RUBBER
15MAY W10318192
