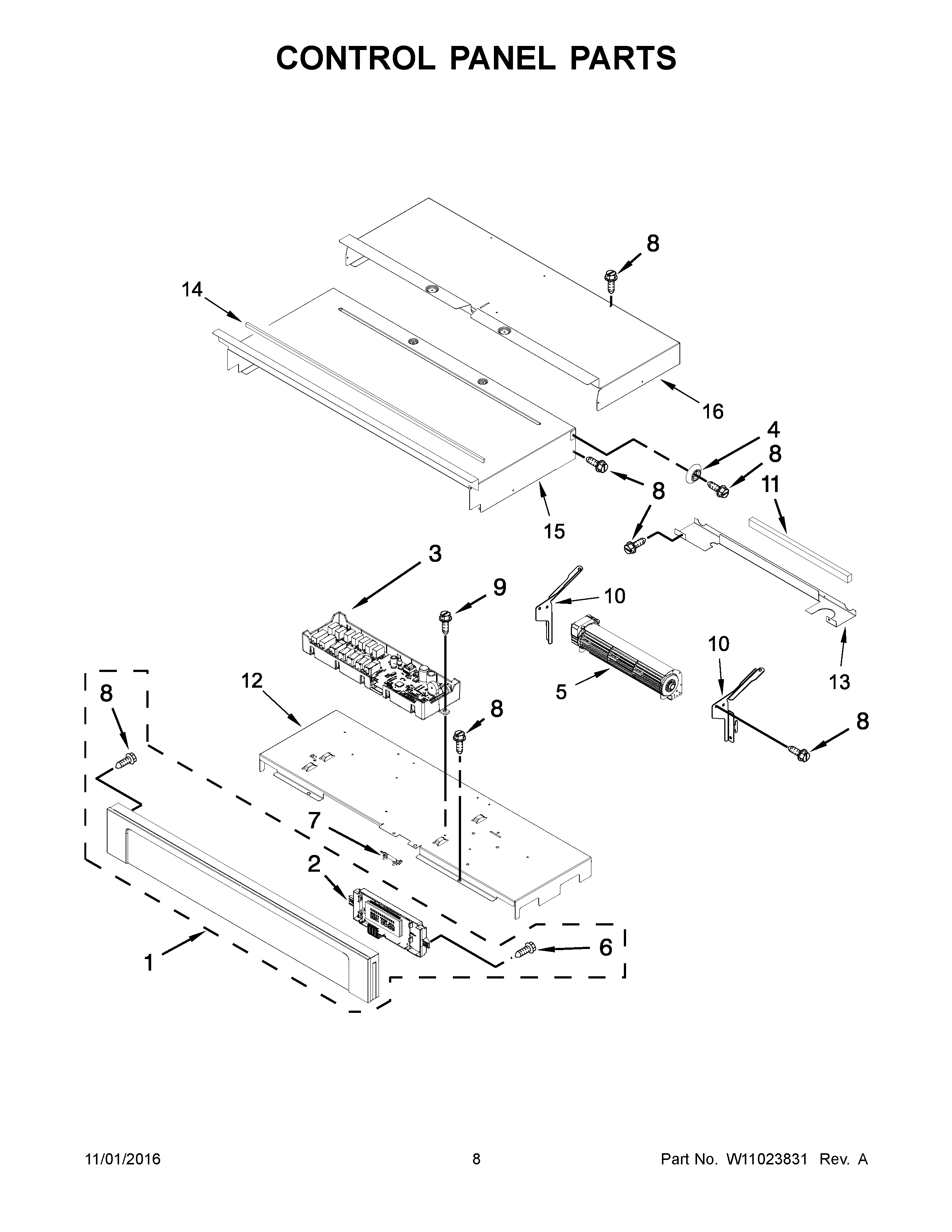

AWO6313SFW01 05 – CONTROL PANEL PARTS

Products

Position	Product
1B	MAY W10830871
1A	MAY W10830869
1	MAY W10830870
2	INTERFACE (MAXWELL), USER BOARD
3	ASSEMBLY, MAXWELL CONTROL
4	SPACER, LATERAL
5	BLOWER
6	MAY 7101P403-60
7	MAY W10545255
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	MAY W10347650
13	CHASSIS, BACK DIVIDER
14	MAY W10657548
15	MAY W10318192
16	CHASSIS, COVER TOP BACK 30"
