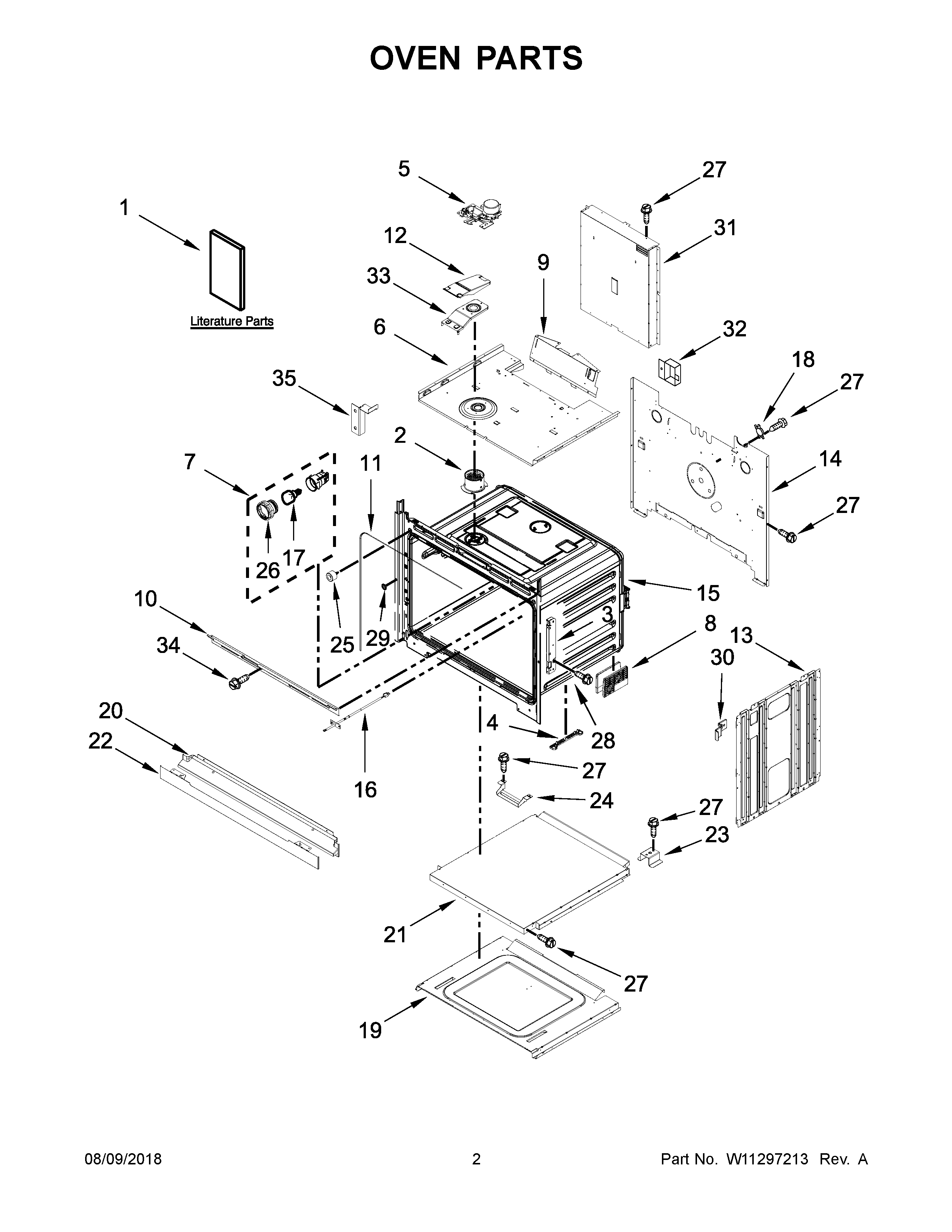

AWO6317SFS02 02 – OVEN PARTS

Products

Position	Product
NI	BRACKET, HARNESS
NI	HARNESS, DOOR LATCH
NI	HARNESS, MAIN
NI	INSULATION, BACK
NI	MAY W10520716
NI	STRAP, LEAD GROUND
NI	CLIP, HARNESS
NI	CLAMP, CONDUIT
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, EOL (MRC)
NI	BAG, HARDWARE
1C	MAY W10796080
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1B	MAY W10785116
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	CHASSIS, TOP
7	MAY W10734063
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	MAY W10283037
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	MAY W10282901
20	MAY W10327375
20A	MAY W10351280
21	CHASSIS, BOTTOM DUCT
22	MAY W10351237
22A	MAY W10327378
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10254050
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33	BASE, VENT EXHAUST
34	MAY 7101P427-60
35A	BRACKET, SIDE COVER (RIGHT)
35	BRACKET, SIDE COVER (LEFT)
