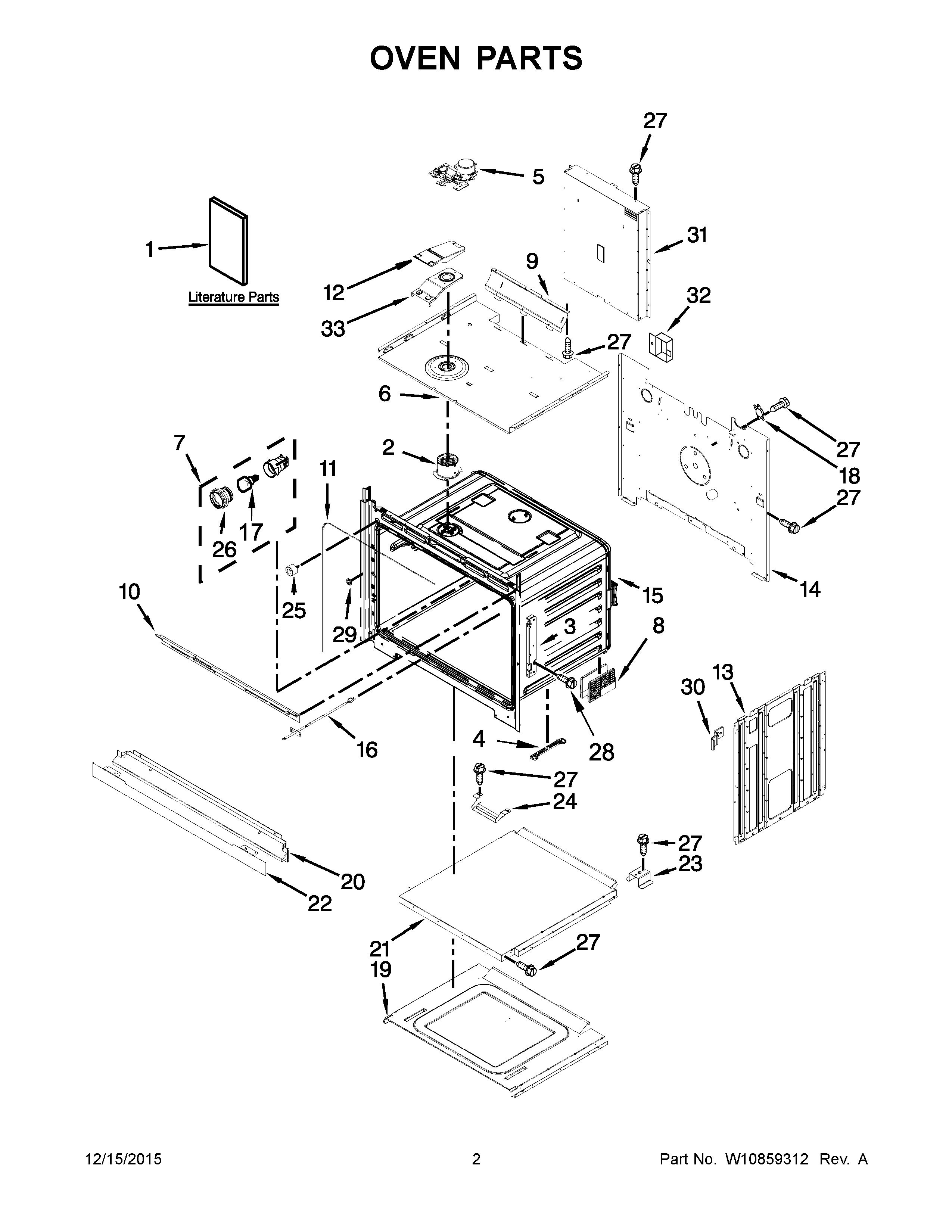

AWO6317SFW00 02 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10520716
NI	BRACKET, HARNESS
NI	CLIP, HARNESS
NI	CLAMP, CONDUIT
NI	INSULATION, BACK
NI	WIRING HARNESS PARTS, CONDUIT, SINGLE
NI	HARNESS, EOL (MRC)
NI	MAY W10775068
NI	MAY 4450800
NI	STRAP, LEAD GROUND
NI	MAY W10775302
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1C	MAY W10796080
1B	MAY W10785116
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	MAY W10314880
6	MAY W10813744
7	MAY W10734063
8	FOOT, BASE
9	MAY W10641572
10	MAY W10283037
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813734
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	MAY W10282901
20A	MAY W10351280
20	MAY W10327375
21	CHASSIS, BOTTOM DUCT
22A	MAY W10327378
22	MAY W10351237
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10254050
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33	BASE, VENT EXHAUST
