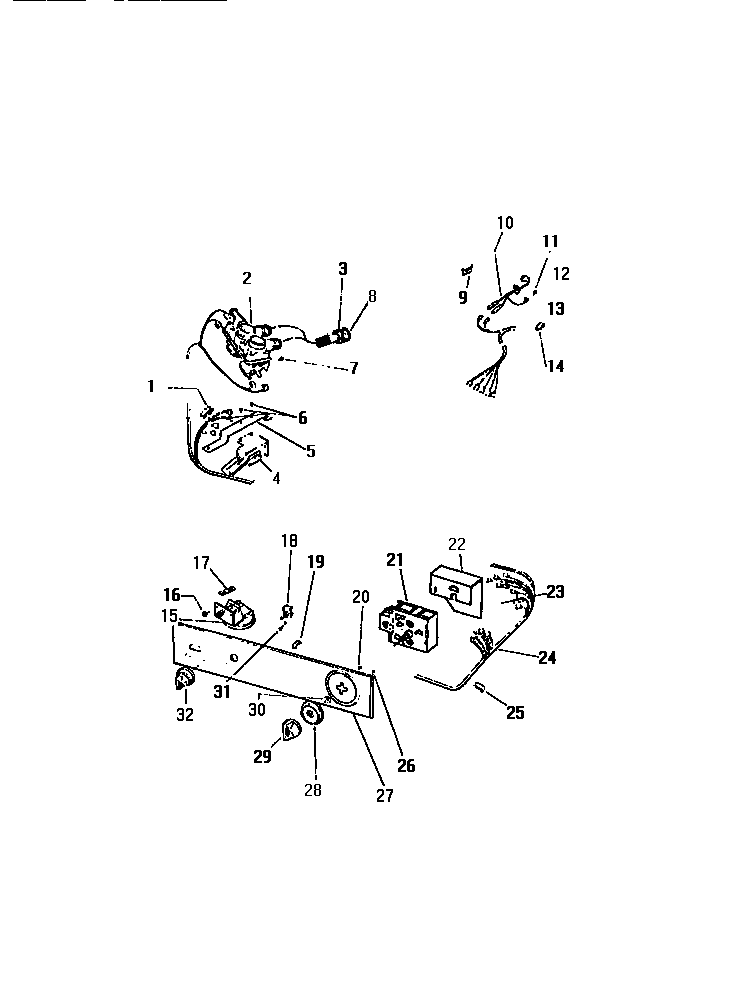

AWP330A1D 02 – CONSOLE & CONTROLS

Products

Position	Product
*31160	WCI F076138015
*31161	WCI F076138011
2	WCI F133048-000
3	5303912532 Frigidaire Hose Inlet 60"
4	WCI F138862000
5	WCI F138861000
6	218359202 Frigidaire Refrigerator Screw
7	SEMS SCREW, WATER VALVE MOUNTING (2)
9	WCI F077094000
10	WCI F132470-000
11	134154100 Frigidaire Screw 10-32 x 0.375 Co
12	WCI F079865-000
13	5303015671 Frigidaire Bracket Termination Screw
14	WCI F002751000
15	WCI F078342100
16	131243800 Frigidaire Screw
17	SHIELD, TERMINAL
18	WATER TEMPERATURE SWITCH
19	WCI F131347000
20	WCI F060796-000
21	WCI F140432-000
22	WCI F140881-000
23	WCI F068832016
24	WCI F140602-000
25	CLIP, HARNESS TO RH SIDE PANEL (3)
26	WCI F073635000
27	TRIMPLATE ASSEMBLY
28	TIMER POINTER
29	WCI F141025-000
30	WCI F078212-100
31	WCI F135021000
32	ROTARY KNOB (2)
