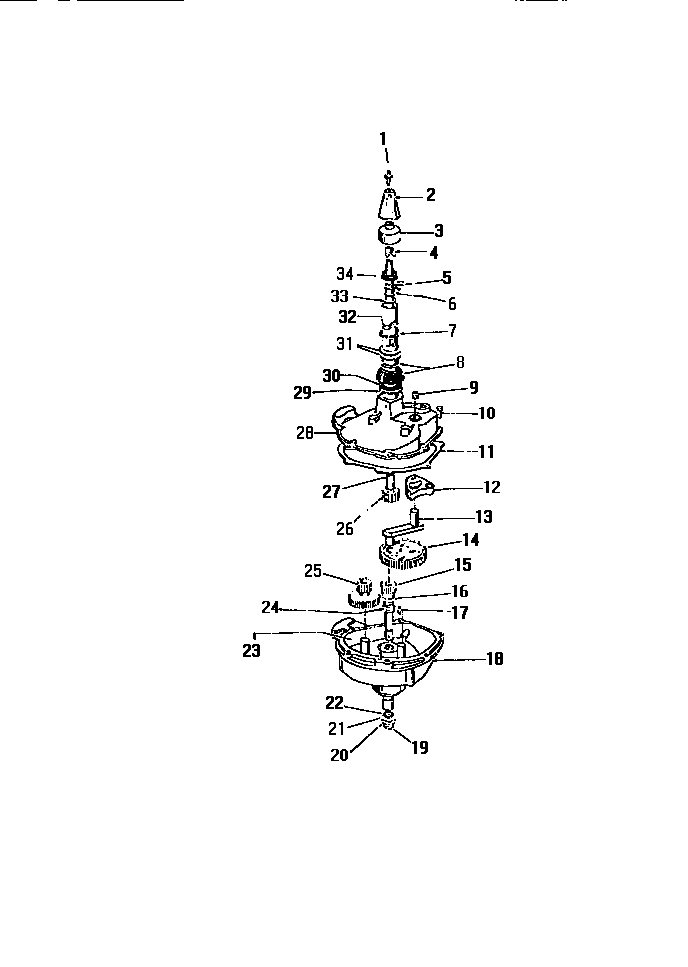

AWP330A1D 07 – TRANSMISSION

Products

Position	Product
*31181	WCI F133059-000
1	WCI F063882000
2	DRIVE LUB
3	WCI F077283000
4	SHIM (AS REQUIRED)
6	WCI F077060000
7	WCI F061305000
8	WCI F079420000
9	WCI F077061000
10	WCI F079688000
11	WCI F077047000
12	WCI F130405000
13	WCI F066078100
14	WCI F130404-100
15	LOWER SHAFT
16	WCI F077051-000
17	WCI F077058-000
18	WCI F133040-000
19	WCI F068158000
20	WCI F077098000
21	WASHER, THRUST
22	5303161173 Frigidaire Seal Assembly
23	OIL, TRANSMISSION, 1 QUART
24	WCI F077052000
25	WCI F130403100
26	WCI F077092000
27	134736400 Frigidaire Gear Case
28	WCI F140575-000
29	WCI F077154-000
30	WCI F077156000
31	WASHER, SPACER (AS REQUIRED)
32	WCI F060556400
33	WCI F062568000
34	5303161307 Frigidaire Dryer Seal Assembly
