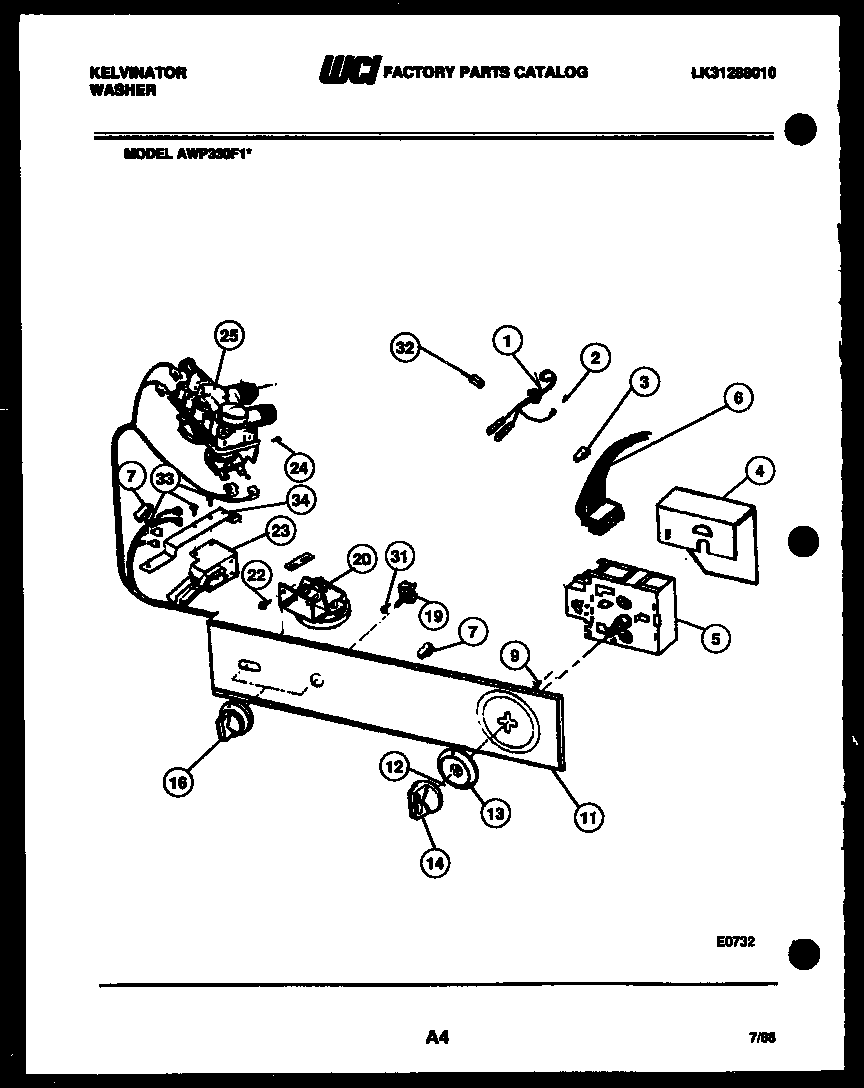

AWP330F1W 03 – FRONT PANEL PARTS

Products

Position	Product
*58696	5303015671 Frigidaire Bracket Termination Screw
*58695	WCI F079865-000
1	WCI F132470-000
2	134154100 Frigidaire Screw 10-32 x 0.375 Co
3	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
4	WCI F140881-000
5	WCI 3015649
6	WCI 3018392
7	CLIP, HARNESS TO RH SIDE PANEL (3)
9	WCI F060796-000
11	TRIMPLATE ASSEMBLY
12	WCI F078212-200
13	TIMER POINTER
14	WCI F141025-000
16	ROTARY KNOB (2)
19A	WCI F142076-000
19	WATER TEMPERATURE SWITCH
20	WCI 3016450
22	131243800 Frigidaire Screw
23	WCI 3017110
24	SEMS SCREW, WATER VALVE MOUNTING (2)
25B	WCI F076138-011
25	WCI F133048-000
25A	WCI F076138-015
31	SCREW SWITCH TO BRACKET ( 2 )
32	WCI F077094-000
33	218359202 Frigidaire Refrigerator Screw
33A	WCI F130439-000
34	BRACKET-LID LOCK & SW ASSEMBLY
