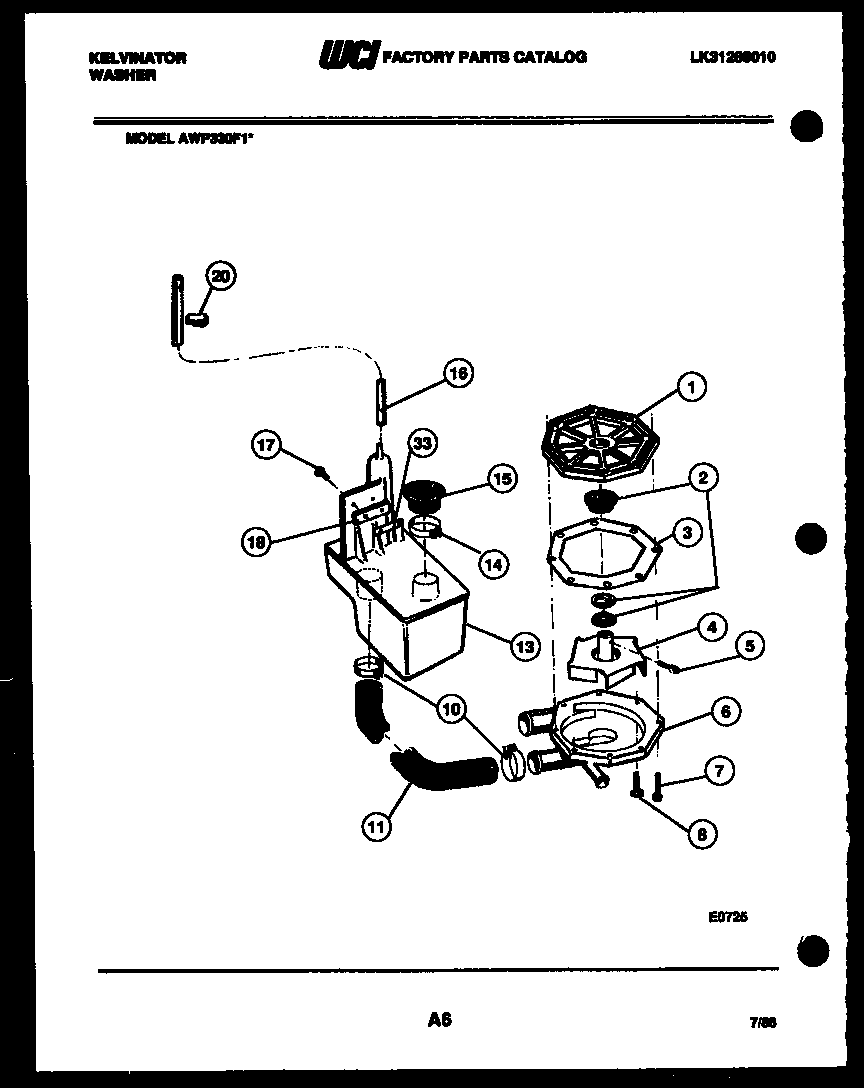

AWP330F1W 04 – DRAIN, RECIRCULATE PARTS

Products

Position	Product
*58716	WCI F133058-100
1	WCI F077352-000
2	WCI F076143-000
3	WCI F077354-000
4	WCI F079428-000
5	IMPELLER SCREW
6	WCI F141874-100
7	5304401796 Frigidaire Screws
8	SCREW, PUMP MOUNTING (4)
10	WCI F140887-027
11	WCI F139191-000
13	WCI F077276-000
14	CLAMP
15	GROMMET (USE F133016000 PRIMER ADHESIVE AND 08006576 ADH
15A	ADHESIVE, 1 OUNCE
16	5304401845 Frigidaire Tube Pressure
17	WCI F136471-000
18	WCI F140324-000
20	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
33	WCI F139592-000
