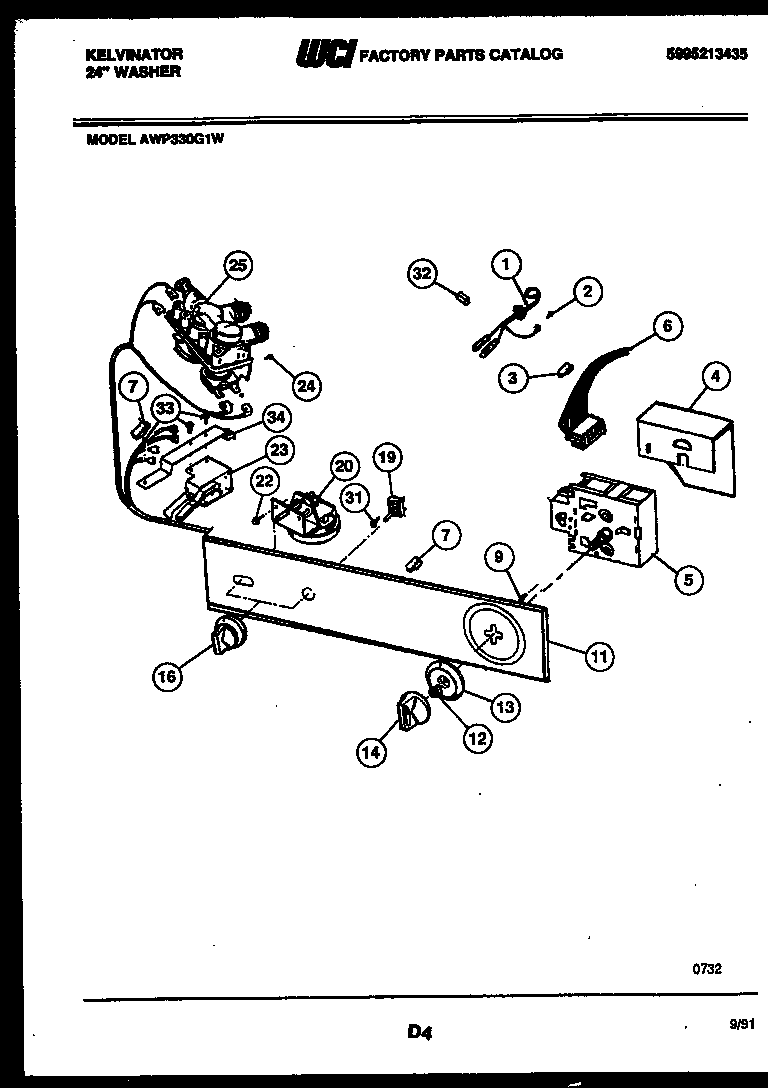

AWP330G1D 03 – CONSOLE AND CONTROL

Products

Position	Product
*22224	WCI 08027572
*22225	5303015671 Frigidaire Bracket Termination Screw
*22225	WCI 08011251
*22225	WCI 5303269886
*22225	WCI 3205934
*22225	WCI 3205935
1	WCI 3205929
2	134154100 Frigidaire Screw 10-32 x 0.375 Co
3	WCI 08008454
4	WCI 3205931
5	WCI 5303015649
6	HARNESS
7	WCI 08008458
9	SCREW (2)
11	TRIMPLATE ASSEMBLY
12	Spacer,washer ,timer shaft
13	POINTER-TIMER
14	WCI 5303207073
16	KNOB-ROTARY (2)
19	SWITCH-WATER TEMP
19A	WCI 3018800
20	WCI 5303209227
22	SCREW
23	WCI 5303209725
24	WCI 5303010202
25	WCI 5303912509
25B	WCI 5376138011
25A	WCI 08008466
31	WCI 3161259
32	WCI 08004657
33A	SCREW (3)
33	SCREW (2)
34	BRACKET-LID LOCK & SW ASSEMBLY
