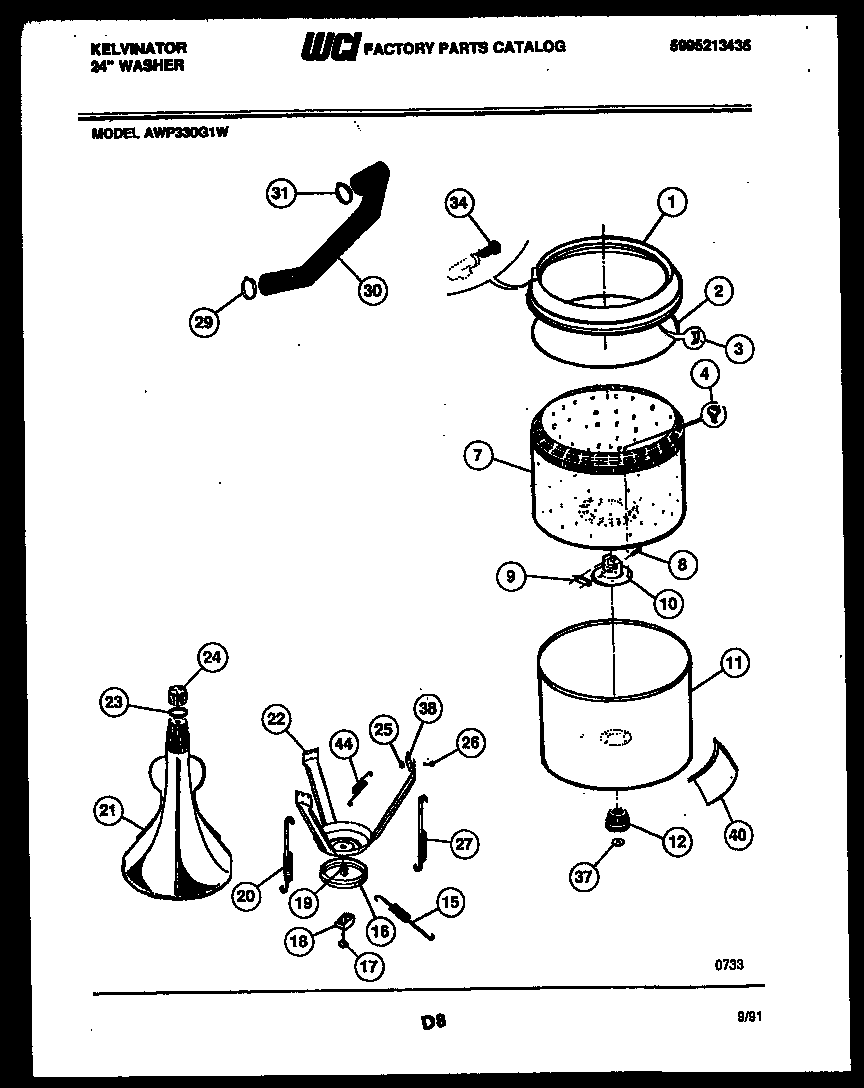

AWP330G1W 05 – TUB DETAIL

Products

Position	Product
1	COVER-TUB
2	WCI 5303161121
3	WCI 5303161199
4	SCREW (5)
7	WCI 5303161486
8	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
9	137107000 Frigidaire Plate
10	WCI 5308014908
11	WCI 5303161127
12	WCI 5308027536
15	WCI 5308006573
16	SNUBBER RING
17	WCI 5303161284
18	WCI 5303161202
19	NUT-EXPANSION
20	WCI 5303161131
21	WCI 5303161485
22	WCI 5303161132
23	WCI 5373565000
24	WCI 5303161122
25	WCI 3161204
26	SCREW (6)
27	WCI 5303161133
29	WCI 5303012110
30	HOSE-VALVE TO INLET
31	WCI 5303161206
34	WCI 5308027515
37	5308002401 Frigidaire Washer Primary
38	WCI 5303280322
40	WCI 5303280323
44	WCI 5303212125
