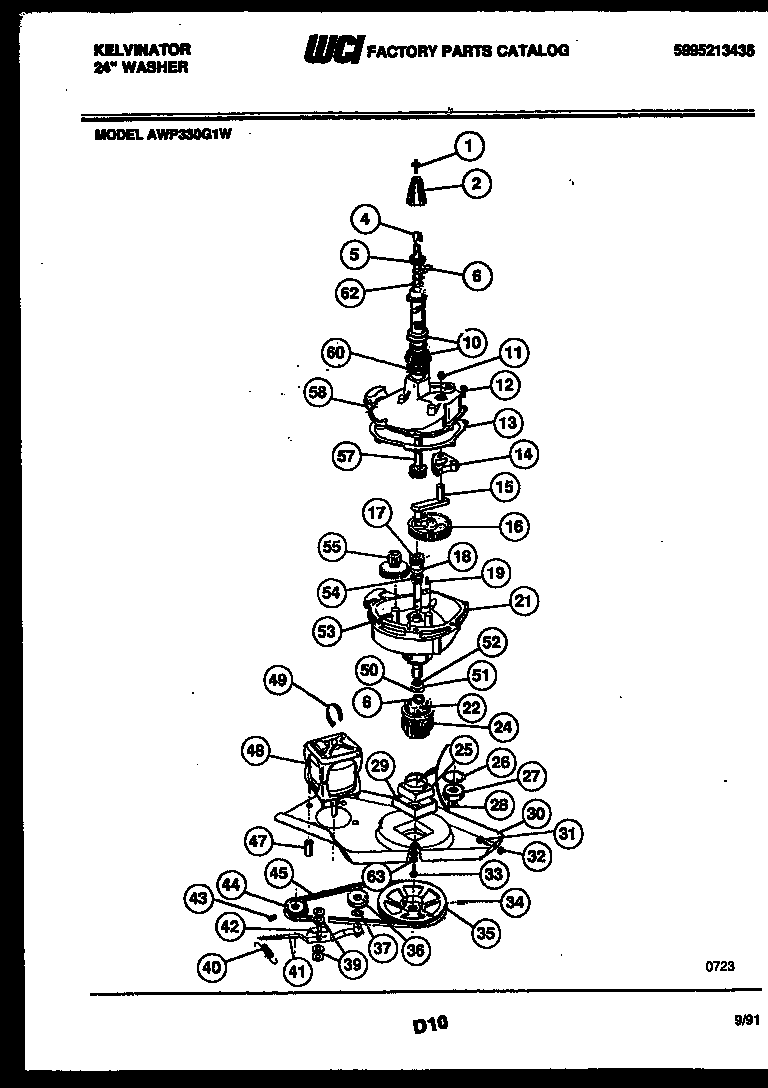

AWP330G1W 06 – TRANSMISSION PARTS

Products

Position	Product
*22243	WCI 5303208459
1	WCI 5303161221
2	WCI 5303280324
4	SHIM-DRIVE BLOCK (AS REQUIRED)
5	5303161307 Frigidaire Dryer Seal Assembly
6	WCI 5303161223
10	TUB SEAL ASSY.
11	WCI 5303161224
12	SCREW (6)
13	GASKET
14	WCI 5308011268
15	WCI 5303161169
16	WCI 5308015496
17	WCI 5308014905
19	WCI 5303161227
21	HOUSING-LOWER
24	WCI 5303161182
27	BEARING HOUSING
28	WCI 5308015536
29	WCI 5377009100
30	WCI 08002472
31	WCI 3161211
32	WCI 3161212
33	SCREW (2)
34	5303270023 Frigidaire Screw Set
35	WCI 5303937080
36	5304527822 Frigidaire Pulley
37	SPRING WASHER
39	WCI 08027535
40	SPRING TENSION
41	WCI 5303937001
43	WCI 5303206869
44	WCI 5308006686
45	5303280326 Frigidaire Drive Belt Assembly
47	WCI 5303161303
48A	WCI 5308014888
48	WCI 5308015502
49	5303161300 Frigidaire Strap
50	WCI 5308002475
51	WCI 5303161226
52	5303161173 Frigidaire Seal Assembly
53	WCI 5303208460
54	WCI 5303161174
55	WCI 5303161175
57	134736400 Frigidaire Gear Case
58	WCI 5303937039
60	SLINGER
62	THRUST WASHER
63	RUBBER SPACER (2)
