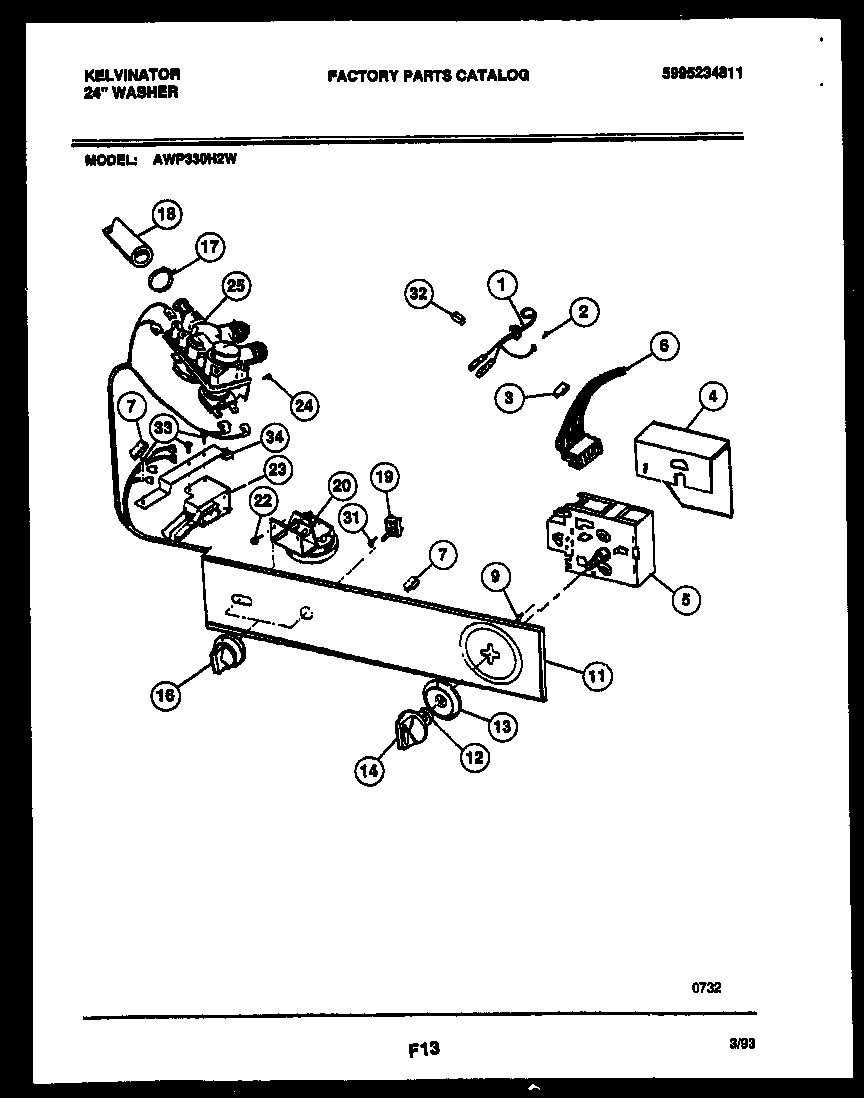

AWP330H2D 03 – CONSOLE AND CONTROL PARTS

Written by

Products

Position	Product
*30155	WCI 3205935
*30155	5303015671 Frigidaire Bracket Termination Screw
*30155	WCI 08011251
*30155	WCI 5303284137
*30155	WCI 08027572
*30155	WCI 3205934
1	WCI 3205929
2	134154100 Frigidaire Screw 10-32 x 0.375 Co
3	WCI 08008454
4	WCI 3205931
5	WCI 5303284686
6	WCI 131064400
7	WCI 08008458
9	SCREW (2)
11	TRIMPLATE ASSEMBLY
12	Spacer,washer ,timer shaft
13	POINTER-TIMER
14	WCI 5303207073
16	KNOB-ROTARY (2)
17	154611101 Frigidaire Dishwasher Clamp
18	HOSE-VALVE TO INLET
19	SWITCH-WATER TEMP
20	WCI 131065500
22	131168200 Frigidaire Dryer Screw
23	WCI 5303209725
24	WCI 5303010202
25B	WCI 5376138011
25	WCI 5303912509
25A	WCI 08008466
31	WCI 3161259
32	WCI 08004657
33	SCREW (2)
33A	SCREW (3)
34	BRACKET-LID LOCK & SW ASSEMBLY
