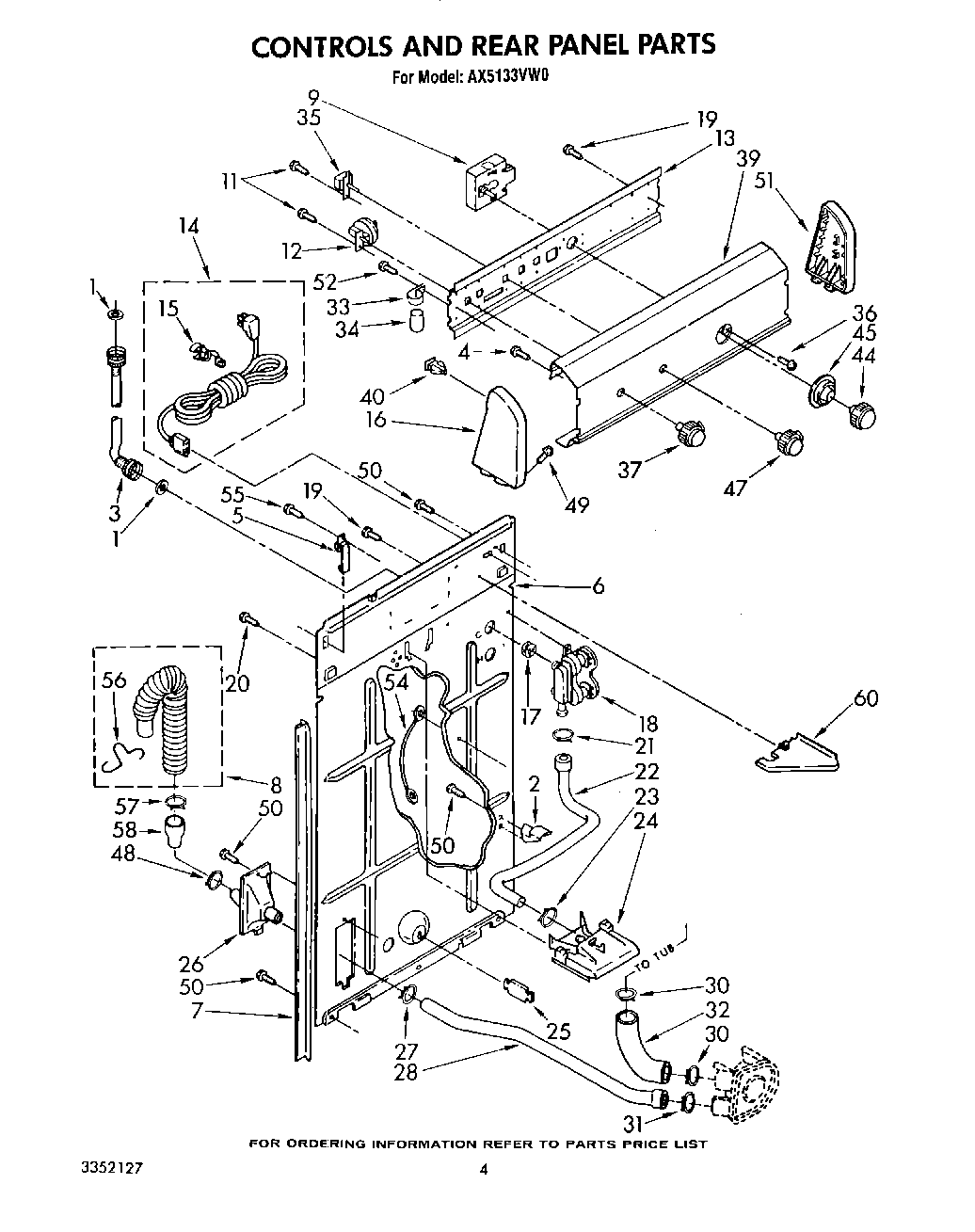

AX5133VW0 03 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Pin, Cabinet Guide (2)
3	WP89503 Whirlpool Washer Fill Hose
4	SCREW
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	285952 Whirlpool Timer Assembly
11	WPL 355326
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
22	HOSE
23	WP596669 Whirlpool Hose Clamp
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	357030 Whirlpool Clamp
34	CAPACITOR
35	Switch, Water Temperature
35	Switch, Water Temperature (Alt.)
35	(Alt.)
36	WP356418 Whirlpool Screw
37	Knob, Water Level
39	Panel, Console
40	WP689559 Whirlpool Nut
44	280193 Whirlpool Timer Knob
45	Dial, Timer
47	Knob, Temperature
48	WP356138 Whirlpool Hose Clamp
49	WPL 64211
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
54	WPL 364089
55	WP308685 Whirlpool Microwave Screw
56	WPL 3350222
57	WP616099 Whirlpool Clamp
58	WP384496 Whirlpool Hose Coupling
60	WPL 3348424
