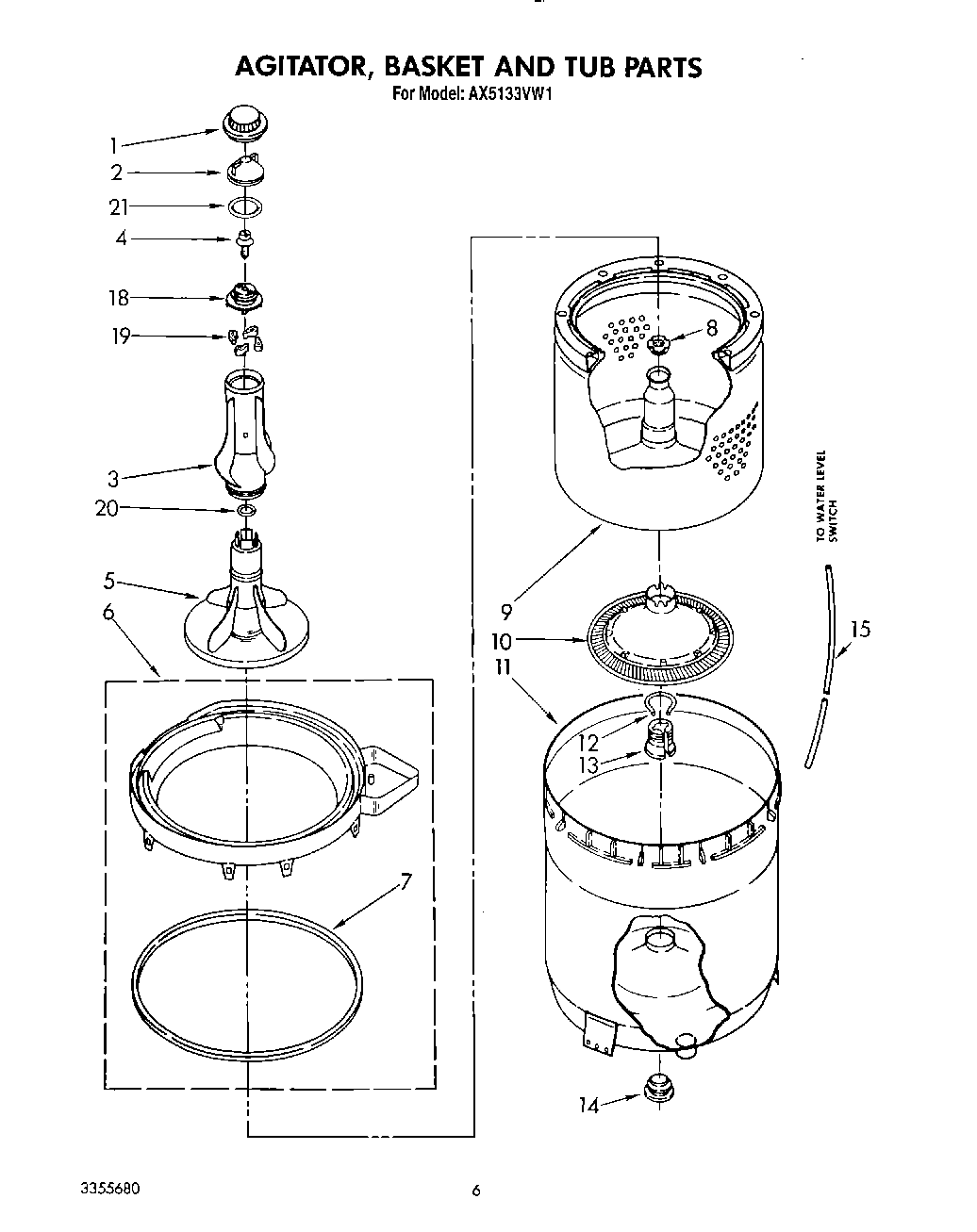

AX5133VW1 04 – AGITATOR, BASKET AND TUB

AX5133VW1 04 – AGITATOR, BASKET AND TUB

Written by

in

AX5133VW1 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WP3348752 Whirlpool Agitator Mover
4WP358237 Whirlpool Agitator Bolt
5AGITATOR
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10285868 Whirlpool Washer Filter Plug Kit
1163849 Whirlpool Outer Tub Primary Assembly
12Lock, Filter
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
18285811 Whirlpool Washer Agitator Repair Kit
1980040 Whirlpool Washer Agitator Dog Kit
20Seal, Agitator
21WPW10072840 Whirlpool Seal Assembly
