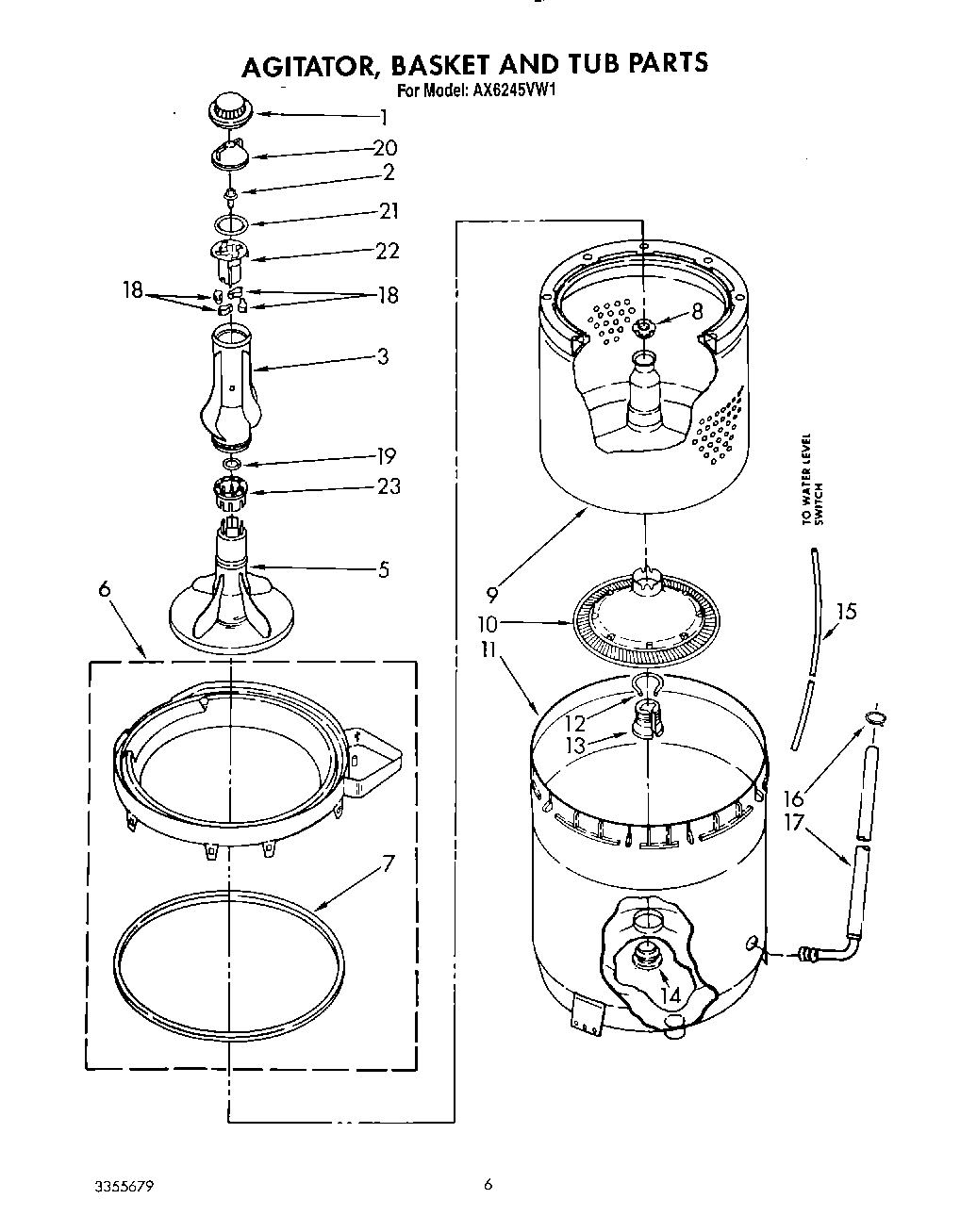

AX6245VW1 04 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	WP3348752 Whirlpool Agitator Mover
5	AGITATOR
6	W10880720 Whirlpool Tub Ring
7	WP3976308 Whirlpool Tub Seal
8	WP21366 Whirlpool Spanner Nut
9	W10389328 Whirlpool Basket
10	285868 Whirlpool Washer Filter Plug Kit
11	3361596 Whirlpool Outer Tub Primary
12	Lock, Filter
13	WP389140 Whirlpool Drive Block or Bell
14	W10814296 Whirlpool Washer Center Post Seal Gasket
15	WP353244 Whirlpool Hose
16	WP596669 Whirlpool Hose Clamp
17	Hose, Bleach
18	80040 Whirlpool Washer Agitator Dog Kit
19	Seal, Agitator
20	WPW10074580 Whirlpool Agitator Inner Cap and Seal
21	WPW10072840 Whirlpool Seal Assembly
22	285811 Whirlpool Washer Agitator Repair Kit
23	285587 Whirlpool Thrust Washer
