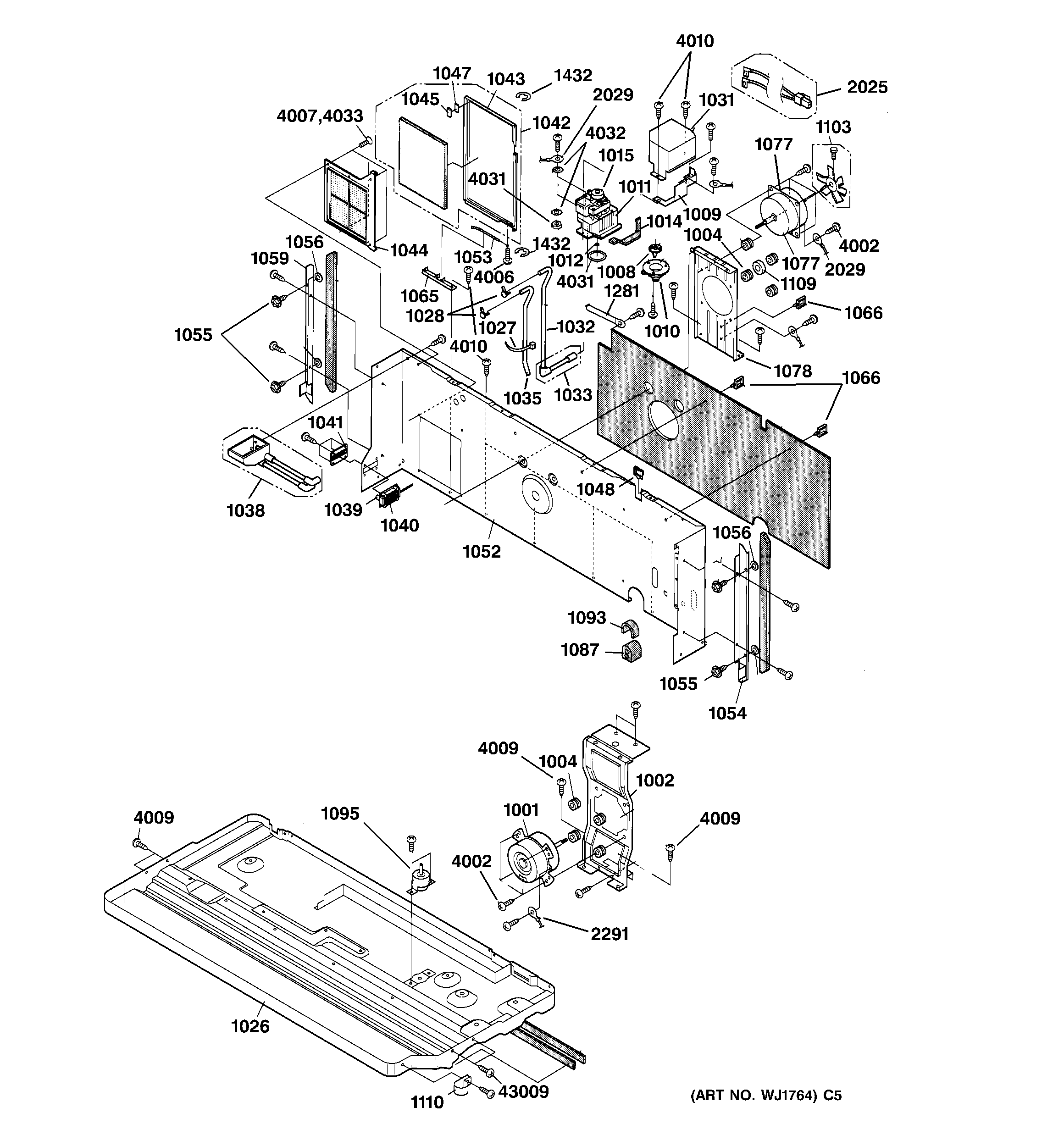

AZ32H15E2DM1 CHASSIS ASSEMBLY

Products

Position	Product
1001	GEN WP94X10017
1001	GEN WP94X10032
1002	GEN WJ65X10001
1004	GEN WJ01X10034
1008	WP73X10002 GE Fan Assembly
1009	WP79X10005 GE Pump Cover
1010	WP76X10009 GE Fan Housing
1011	GEN WP76X10010
1012	GEN WJ05X10015
1014	GEN WJ40X10008
1015	GEN WP94X10027
1015	GEN WP94X10011
1026	GEN WJ89X10021
1027	GEN WJ03X10012
1028	WP03X10002 GE Rubber Clamp
1031	GEN WP79X10006
1032	GEN WJ57X10001
1033	GEN WJ57X10002
1035	GEN WJ40X10009
1038	GEN WJ46X10001
1039	GEN WJ14X10008
1040	GEN WJ05X10014
1041	GEN WJ80X10002
1042	GEN WP70X10013
1043	GEN WP70X10014
1044	GEN WP76X10002
1045	WP01X10001 GE Magnet
1047	GEN WP01X10002
1048	GEN WJ03X10007
1052	GEN WP76X10012
1053	GEN WP01X10003
1054	CAB. ANGLE ASS'Y
1055	GEN WP01X10004
1056	WP01X10005 GE Rubber Washer
1059	CAB. ANGLE ASS'Y
1065	GEN WJ82X10005
1066	GEN WJ03X10008
1077	GEN WP94X10059
1077	GEN WP94X10020
1078	GEN WJ82X10008
1087	GEN WJ40X10006
1093	GEN WJ40X10007
1095	GEN WJ58X10004
1103	GEN WP73X10003
1109	GEN WJ01X10033
1110	GEN WJ03X10001
1110	GEN WJ03X10006
1432	GEN WP02X10002
2025	GEN WJ37X10005
2029	GEN WJ37X10001
2291	GEN WJ37X10004
4002	GEN WJ01X10035
4006	GEN WJ01X10056
4009	GEN WJ01X10037
4010	GEN WJ01X10012
4031	NUT
4032	WASHER : M4X0 4 STAINLES
4033	GEN WJ01X10057
