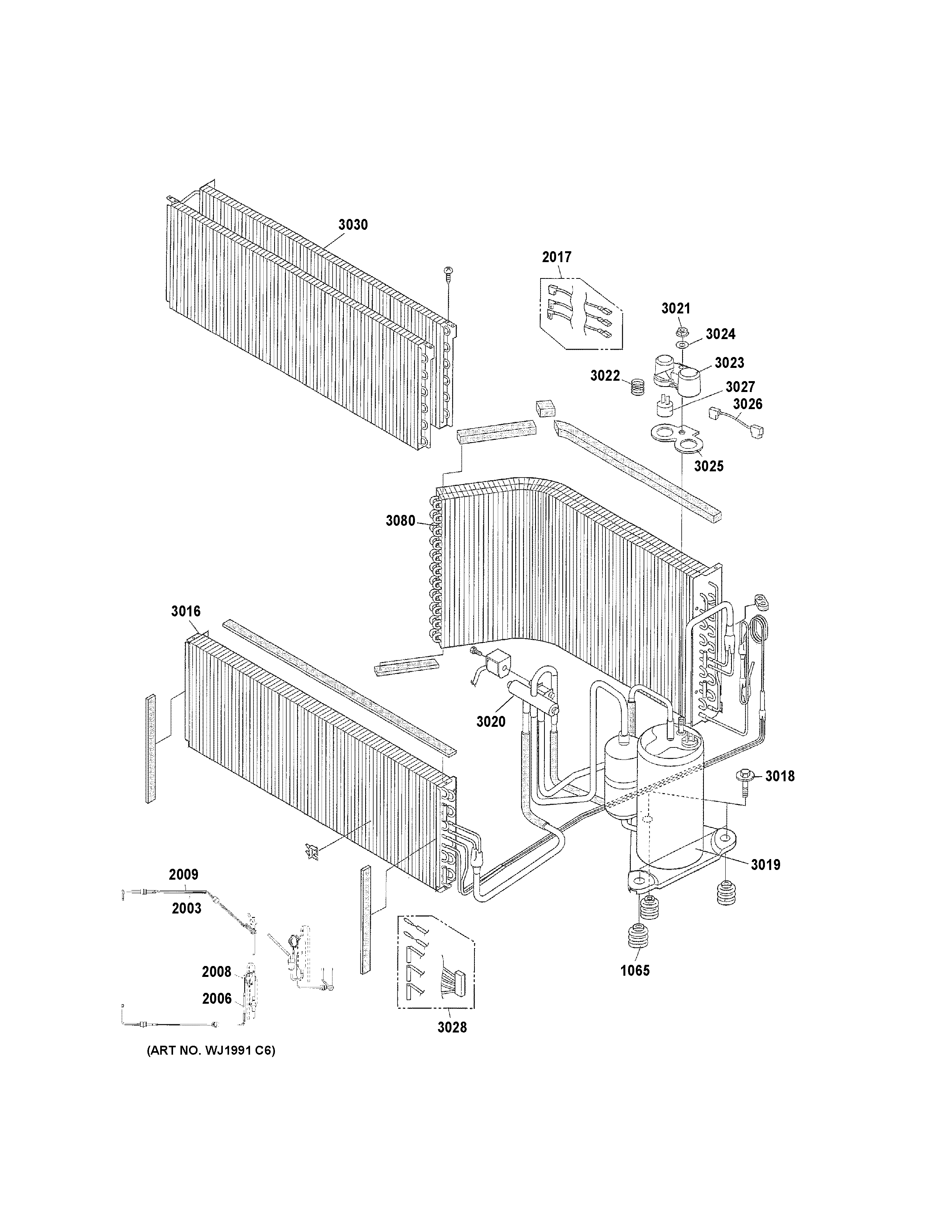

AZ41E07DABM2 SEALED SYSTEM

AZ41E07DABM2 SEALED SYSTEM

Written by

in

AZ41E07DABM2 SEALED SYSTEM

Products

PositionProduct
1065WJ01X10002 GE Compressor C Cushion
2003WP56X10037 GE Capillary Tube
2006WP56X10011 GE Tube Lead
2008WP56X10039 GE Capillary Tube
2009WP56X10036 GE Capillary Tube
2017WP27X10064 GE Rechi Comp Wiring
3016WP87X10049 GE Evaporator Assembly
3018STUD BOLT
3019WP98X10031 GE Compressor
3020WP58X10006 GE Reverse Valve
3021WP01X10015 GE Air Conditioner Special Nut
3022GEN WJ02X10001
3023TERMINAL COVER
3024GEN WJ01X10003
3025GEN WJ43X10003
3026GEN WJ27X10001
3027GEN WP23X10029
3028WP27X10072 GE Thermistor
3030WP56X20700 GE Heat Pipe Assembly
3080WP88X10097 GE Condenser Assembly
