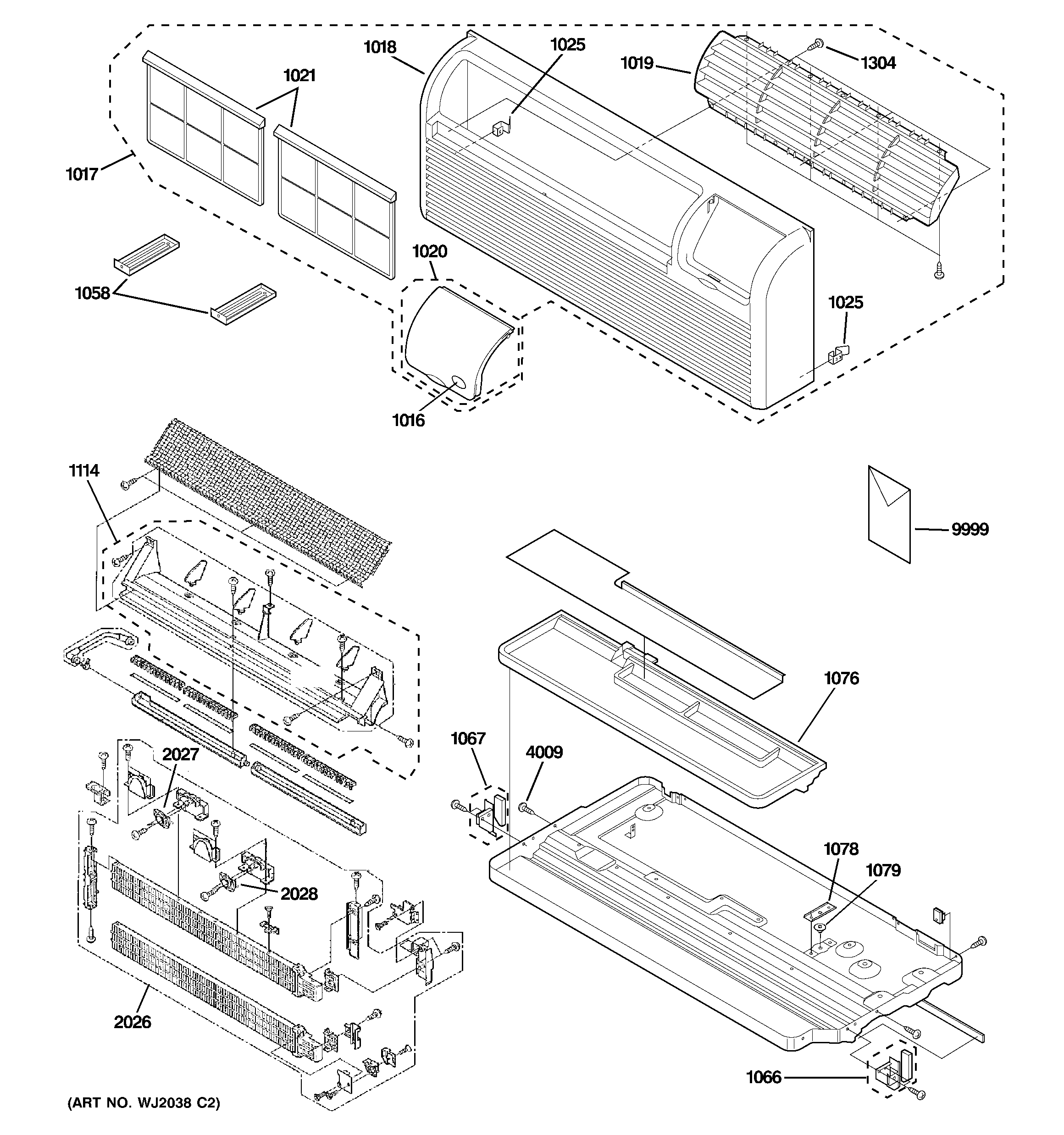

AZ41E09DACW3 GRILLE, HEATER & BASE PAN PARTS

AZ41E09DACW3 GRILLE, HEATER & BASE PAN PARTS

Written by

in

AZ41E09DACW3 GRILLE, HEATER & BASE PAN PARTS

Products

PositionProduct
1016GE BADGE
1017FRONT PANEL ASM
1018FRONT PANEL
1019GEN WP71X10012
1020WP71X10033 GE Air Conditioner Control Cover with Logo
1021WP85X10008 GE Air Conditioner Filter A04
1025WP02X10001 GE Air Conditioner Spring
1058WP65X10013 GE Brace
1066WP03X10012 GE Cabinet Right Angle
1067CAB. ANGLE LH
1076WP89X10023 GE Drain Tray
1078WP65X10012 GE Angle Rubber Bush
1079WP01X10034 GE Rubber Bush
1114WP71X10032 GE Room Air Conditioner Louver
1304GEN WP01X10026
2026WP70X20720 GE Air Conditioner Heater Assembly
2027WP27X10066 GE Air Conditioner Thermostat
2028WP27X10067 GE Air Conditioner Protector F
4009WP01X10021 GE Air Conditioner Special Screw
9999GEN 31-61547-3
9999GEN 49-7612
