AZ41E09DAPW1 UNIT PARTS

AZ41E09DAPW1 UNIT PARTS

Written by

in

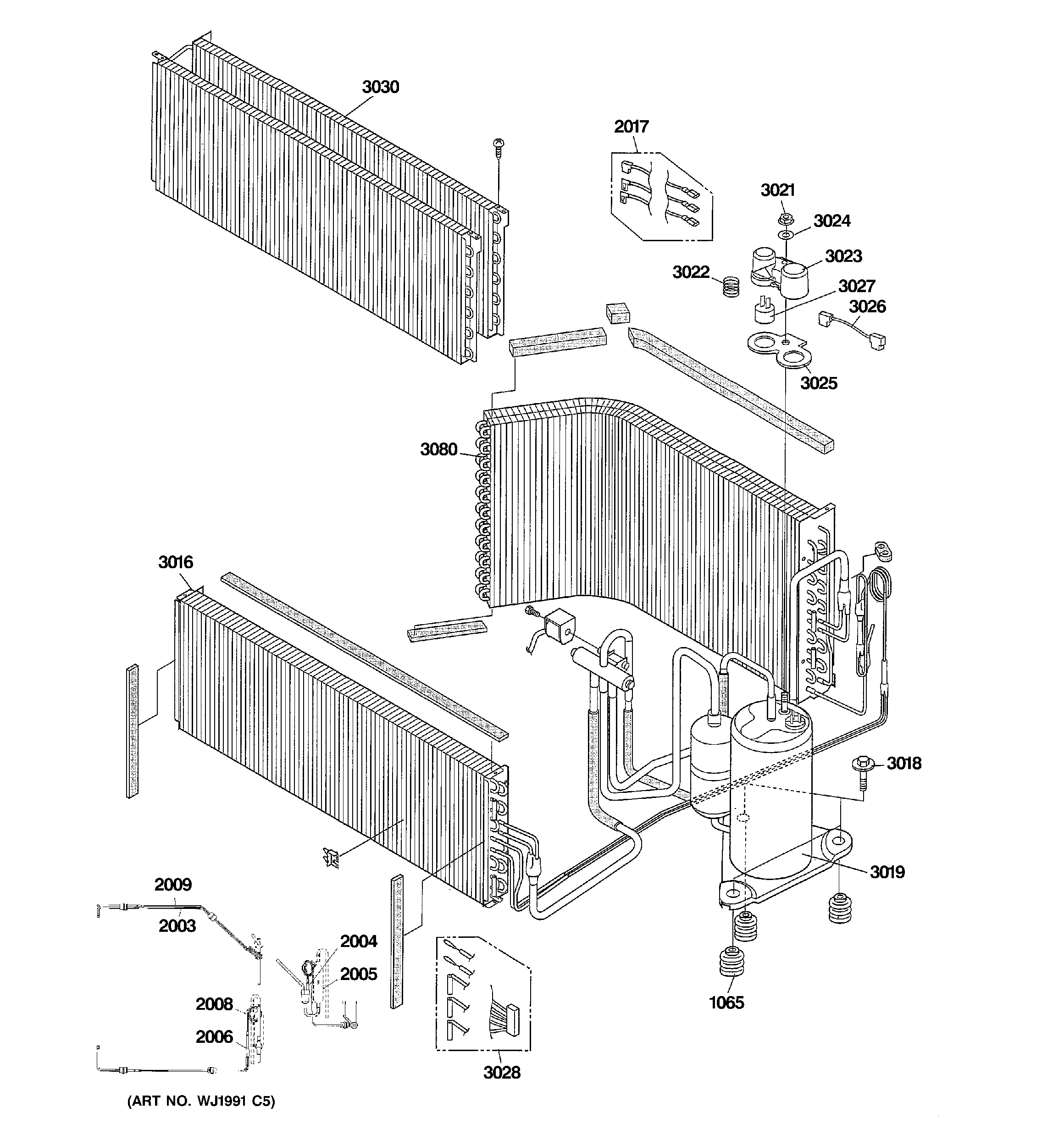

AZ41E09DAPW1 UNIT PARTS

Products

PositionProduct
1065GEN WJ01X10046
2003WP56X10037 GE Capillary Tube
2004WP56X10034 GE Lead Tube
2005WJ56X10009 GE Net Filter Drier
2006WP56X10011 GE Tube Lead
2008WP56X10038 GE Capillary Tube
2009WP56X10036 GE Capillary Tube
2017GEN WP27X10070
3016WP87X10048 GE Evaporator Assembly
3016WP87X10049 GE Evaporator Assembly
3018STUD BOLT
3019GEN WP98X10034
3019COMPRESSOR
3021GEN WJ01X10286
3022GEN WJ02X10031
3023GEN WJ79X10204
3024GEN WJ01X10288
3025GEN WJ43X10061
3027WP23X10033 GE Protector
3028WP27X10072 GE Thermistor
3030WP56X20700 GE Heat Pipe Assembly
3080WP88X10095 GE Condenser Assembly
3080WP88X10093 GE Condenser Assembly
