AZ41E12EAPW1 CONTROL PARTS

AZ41E12EAPW1 CONTROL PARTS

Written by

in

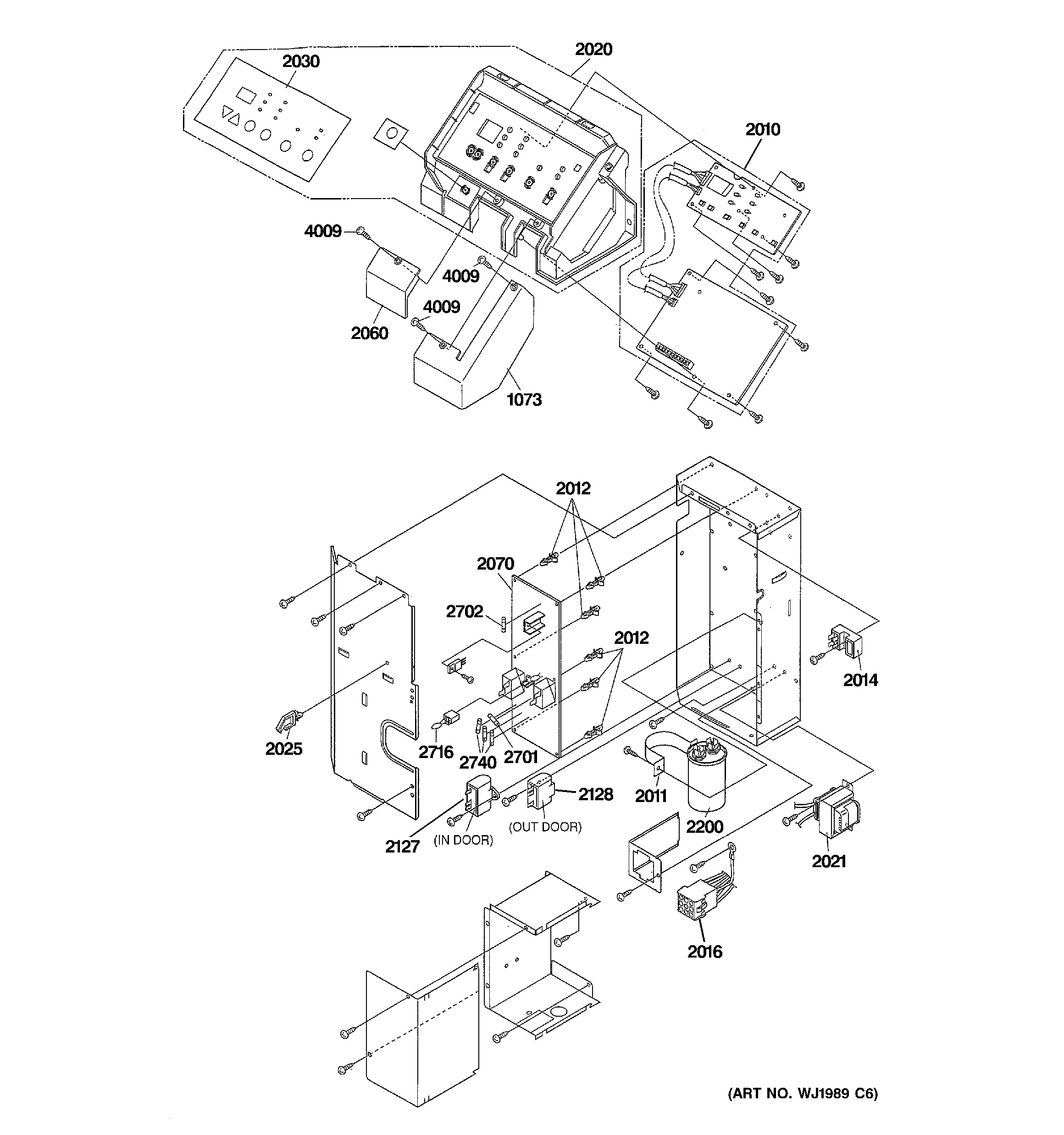

AZ41E12EAPW1 CONTROL PARTS

Products

PositionProduct
1073WP01X10038 GE Air Conditioner Cover
2010GEN WP29X10022
2010PWB MAIN ASM
2010WP29X21384 GE Air Conditioner Main Printed Wiring Board Assembly
2011WP03X10031 GE Air Conditioner Capacitor Clamp
2012WP03X10022 GE Spacer
2014WP29X10014 GE Terminal Board
2016WP03X10026 GE Connector
2016WP03X10024 GE Connector
2020WP07X10013 GE Air Conditioner Control Base Assembly
2021WP27X10069 GE Air Conditioner Transformer
2021WP27X10068 GE Air Conditioner Transformer
2025WP03X10029 GE Wire Holder
2030WP07X10008 GE Air Conditioner Control Sheet
2060WP01X10037 GE Cover
2070WP29X10021 GE Air Conditioner Printed Wiring Board Drive
2070WP29X10019 GE Drive PWB-K
2127GEN WJ20X10116
2127GEN WJ20X10159
2128WP20X10026 GE Fan Capacitor Motor
2128WP20X10022 GE Air Conditioner Outdoor Fan Motor Capacitor
2200GEN WJ20X10132
2701GEN WP23X10003
2701WP23X10032 GE Air Conditioner Fuse
2702WP23X10026 GE Air Conditioner Fuse
2716WP28X10021 GE Varistor
2716GEN WP28X10019
2740WP23X10031 GE Fuse
2740WP23X10028 GE Air Conditioner Fuse
4009WP01X10021 GE Air Conditioner Special Screw
