AZ45E07EACW1 SEALED SYSTEM

AZ45E07EACW1 SEALED SYSTEM

Written by

in

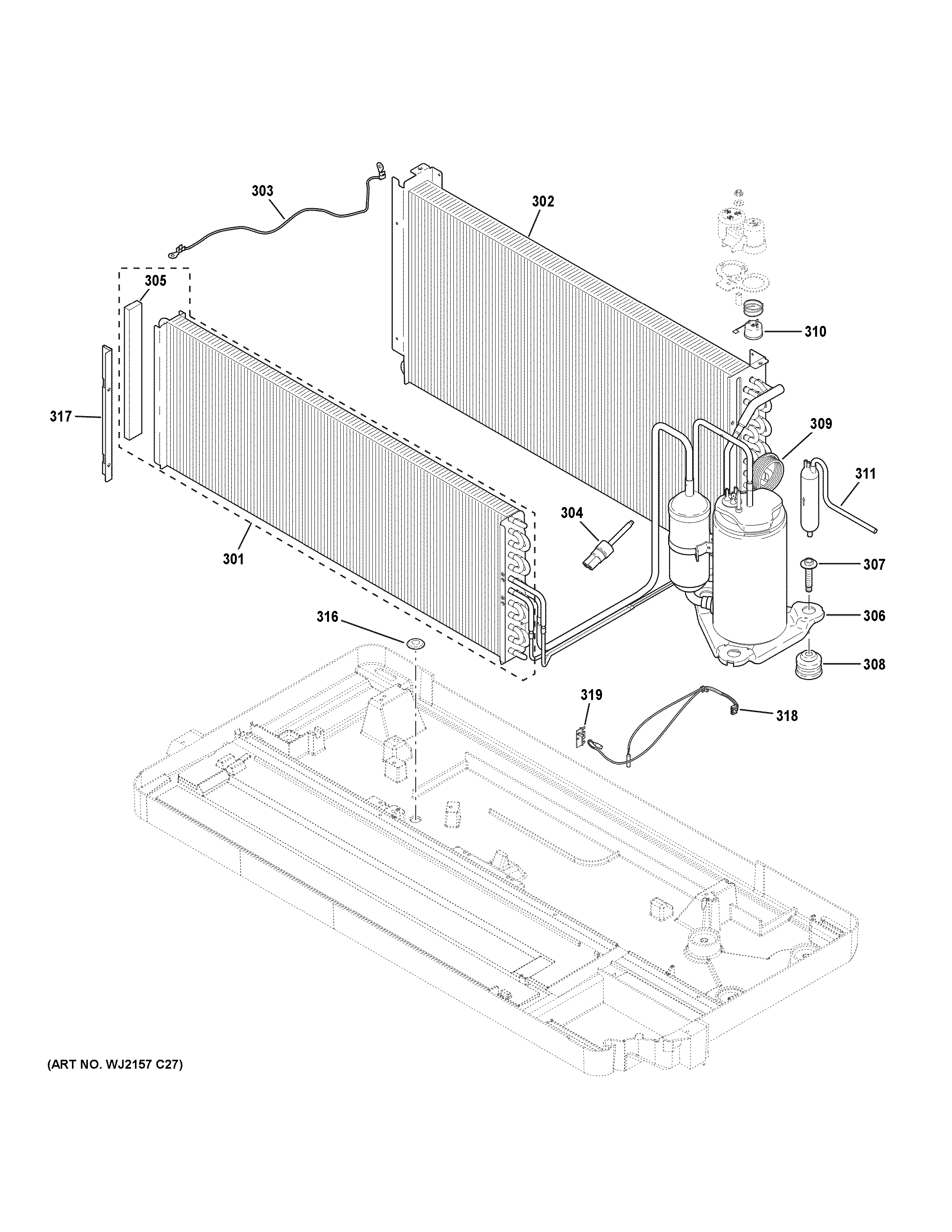

AZ45E07EACW1 SEALED SYSTEM

Products

PositionProduct
301WP88X21660 GE Air Conditioner Indoor Coil Assembly with Foam
302WP87X20741 GE Outdoor Coil Assembly
303GROUND HARNESS
304WP56X21582 GE Pressure Switch Replacement
305WP60X20971 GE Foam Insulation Coil Side
306WP98X21106 GE Compressor Kit Assembly
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309CAP TUBE SUB ASM
310WP20X20899 GE Overload Compressor
311WP56X22821 GE Dryer
316WP01X20980 GE Base Pan Plug
317WP01X23065 GE Coil Clip Left
318WP26X21501 GE Thermistor Clip
319WP65X25533 GE Thermistor Holder
