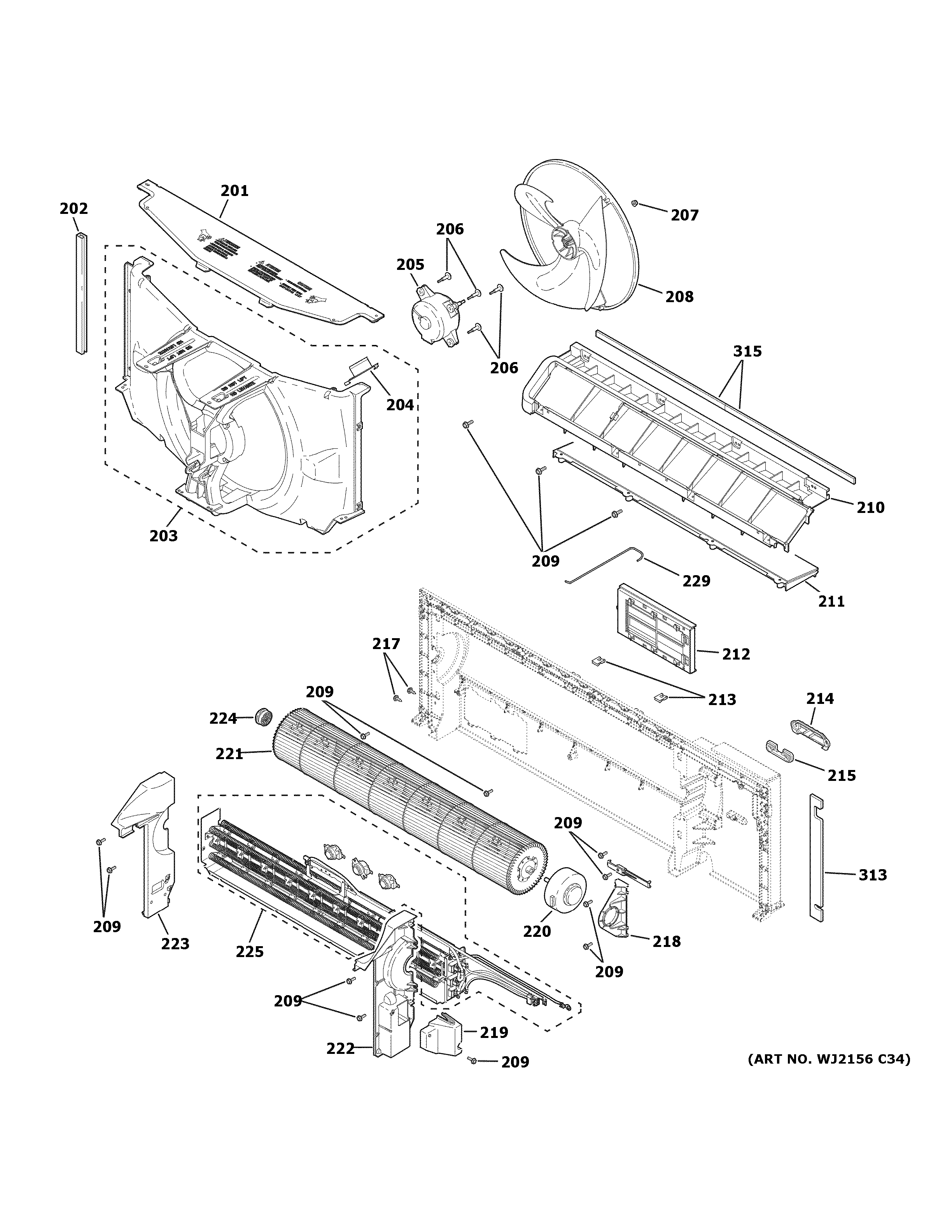

AZ45E09DAPW2 MOTOR & CHASSIS PARTSadmin2025-04-26T13:13:52+00:00AZ45E09DAPW2 MOTOR & CHASSIS PARTS ProductsPositionProduct201WP76X20850 GE Cover Shroud Assembly202WP65X20981 GE Coupler Shroud203WP76X25107 GE Service OD Shroud Assembly204WP01X20965 GE Fan Shroud Clip205WP94X24985 GE Air Conditioner DC Fan Motor206WP01X20878 GE Screw 5/16" B Shoulder Hi-Lo207WP01X20872 GE Nut Hex 10-32208WP94X20856 GE Air Conditioner Outdoor Fan Blade209WP01X20877 GE Screws 10-18 Hi/Lo Hxw 1/2210DEFLECTOR AIR OUTLET211WP71X20968 GE Cutoff Assembly212WP76X20853 GE Door Vent Assembly213WP01X20888 GE Hi/Lo U-Nut 10-16214COVER BULKHEAD WIRE215WP01X20978 GE Grommet217WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber218WP65X22360 GE Indoor Motor Mount219COVER WIRE RIGHT220WP49X22362 GE Air Conditioner Indoor Motor Kit221WP73X32153 GE Air Conditioner Indoor Fan222WP76X20855 GE End Cap223WP76X20854 GE End Cap224WP01X21826 GE Air Conditioner Fan Bushing Assembly225WP27X24982 GE Air Conditioner Heater Assembly 230V229WP65X21680 GE Vent Rod Door313WP60X20973 GE Side Wall Sleeve Gasket315WP60X20975 GE Gasket Wall Sleeve (11-Pack)
