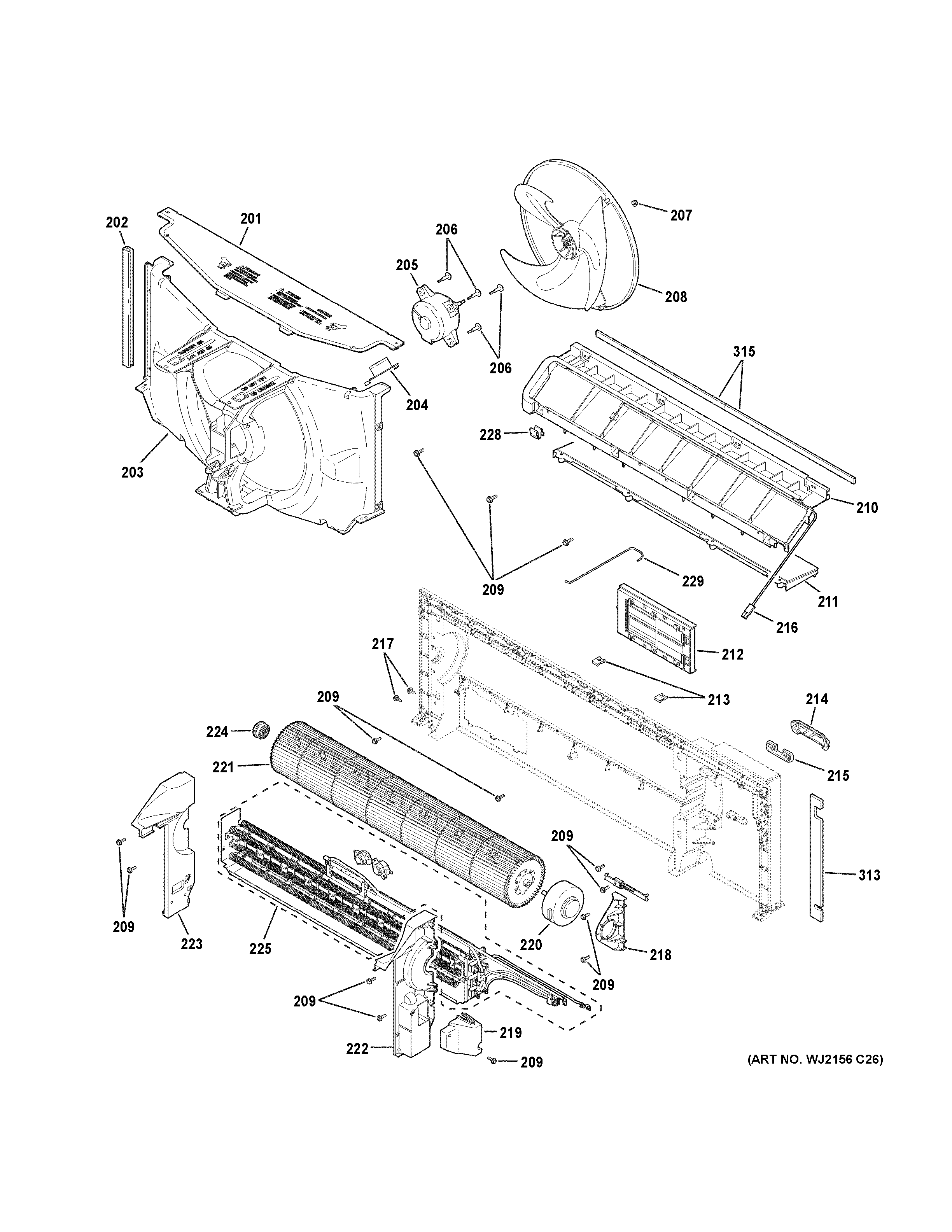

AZ45E09EAPW1 MOTOR & CHASSIS PARTS

AZ45E09EAPW1 MOTOR & CHASSIS PARTS

Written by

in

AZ45E09EAPW1 MOTOR & CHASSIS PARTS

Products

PositionProduct
201WP76X20850 GE Cover Shroud Assembly
202WP65X20981 GE Coupler Shroud
203WP76X25107 GE Service OD Shroud Assembly
204WP01X20965 GE Fan Shroud Clip
205WP94X24985 GE Air Conditioner DC Fan Motor
206WP01X20878 GE Screw 5/16" B Shoulder Hi-Lo
207WP01X20872 GE Nut Hex 10-32
208WP94X20856 GE Air Conditioner Outdoor Fan Blade
209WP01X20877 GE Screws 10-18 Hi/Lo Hxw 1/2
210DEFLECTOR AIR OUTLET
211WP71X20968 GE Cutoff Assembly
212WP76X20853 GE Door Vent Assembly
213WP01X20888 GE Hi/Lo U-Nut 10-16
214COVER BULKHEAD WIRE
215WP01X20978 GE Grommet
216WP26X21547 GE Thermistor
217WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber
218WP65X22360 GE Indoor Motor Mount
219COVER WIRE RIGHT
220WP49X22362 GE Air Conditioner Indoor Motor Kit
221WP73X32153 GE Air Conditioner Indoor Fan
222WP76X20855 GE End Cap
223WP76X20854 GE End Cap
224WP01X21826 GE Air Conditioner Fan Bushing Assembly
225WP27X24983 GE Air Conditioner Heater Assembly 265V
228WP26X22042 GE Thermistor Clip
229WP65X20876 GE Vent Door Rod
313WP60X20973 GE Side Wall Sleeve Gasket
315WP60X20975 GE Gasket Wall Sleeve (11-Pack)
