AZ45E09EAPW5 SEALED SYSTEM

AZ45E09EAPW5 SEALED SYSTEM

Written by

in

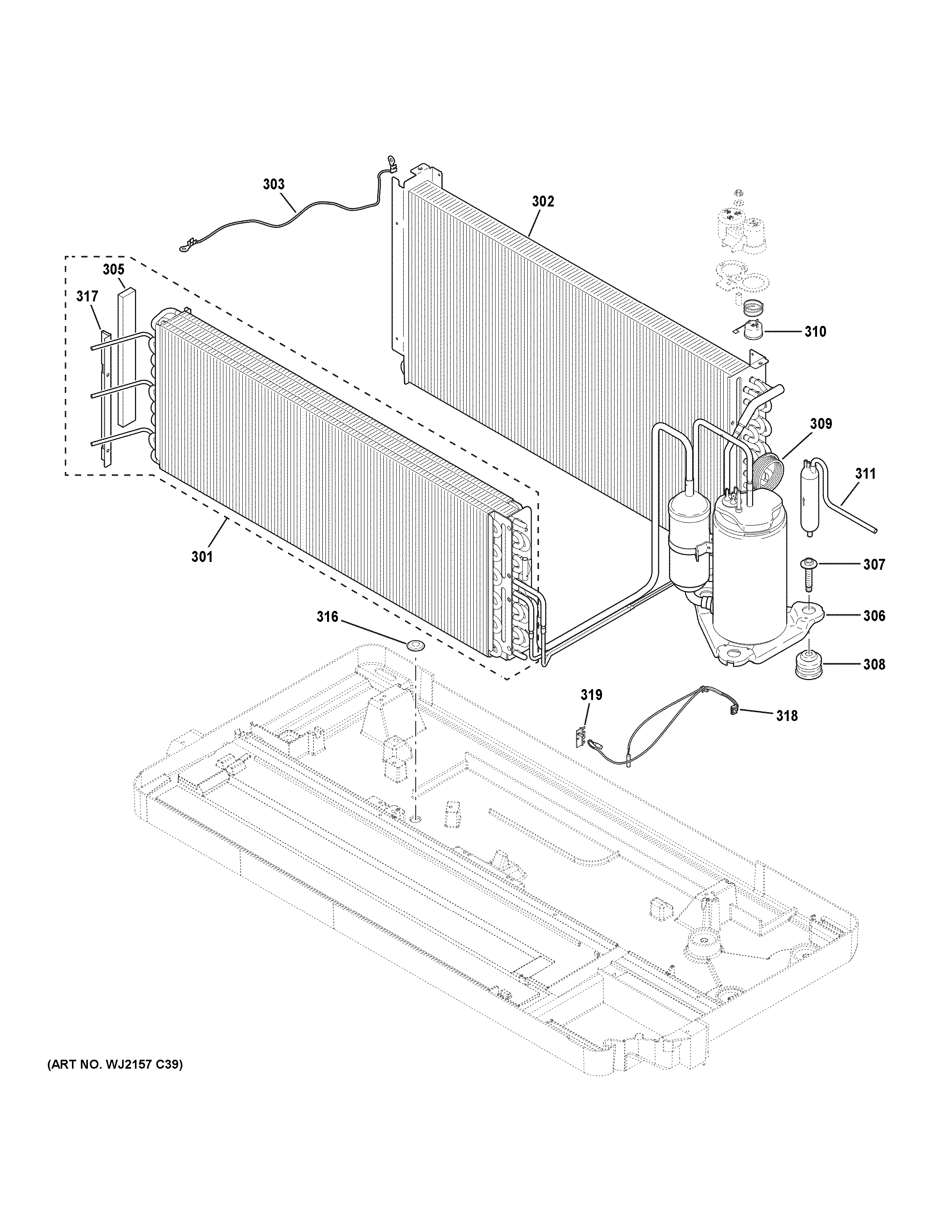

AZ45E09EAPW5 SEALED SYSTEM

Products

PositionProduct
301WP88X24718 GE Indoor Coil with Foam Assembly
302WP87X25582 GE Outdoor Coil Assembly
303GROUND HARNESS
305WP60X20971 GE Foam Insulation Coil Side
306WP98X21107 GE Compressor Kit
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21369 GE Cap Tube Sub Assembly
310WP20X21009 GE Compressor Overload
311WP56X22821 GE Dryer
316WP01X20980 GE Base Pan Plug
317WP01X23065 GE Coil Clip Left
318WP26X21501 GE Thermistor Clip
319WP65X25533 GE Thermistor Holder
