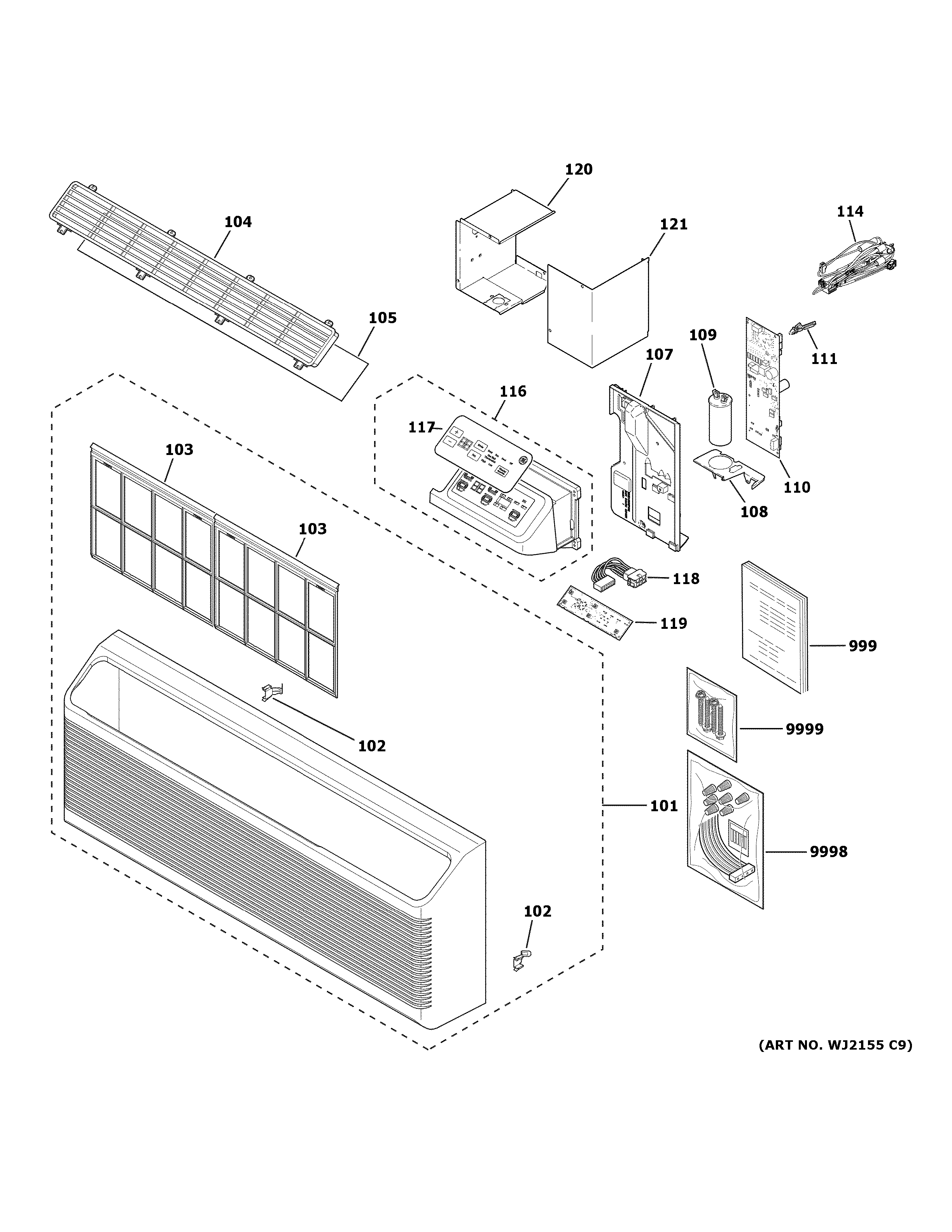

AZ45E12EACW6 GRILLE & CONTROL PARTS

Products

PositionProduct
101WP71X20960 GE Air Conditioner Front Assembly Room
102WP65X20848 GE Front Room Clip
103WP85X20858 GE Air Conditioner Zoneline Replacement Filter
104WP71X20866 GE Air Conditioner Louver Outlet
105WP71X20976 GE Welded Wire Grid
107WP76X24989 GE Control Box Cover
108WP65X24991 GE Bracket Capacitor
109WP20X20915 GE Capacitor
110SERVICE MAIN BOARD
111WP01X24997 GE Support Clip Board
114HARNESS MAIN 265V
116WP76X24978 GE Air Conditioner UI Housing Assembly
117WP71X20874 GE Air Conditioner Display Overlay
118WP37X20887 GE Air Conditioner UI Jumper Harness
119WP26X31393 GE PTAC UI PCB Assembly
120WP76X25001 GE Junction Box Base
121WP76X25000 GE Junction Box Cover
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
9998WP26X24981 GE Air Conditioner Thermostat Kit
9999WP01X20865 GE Zoneline Install Screws 4 Pack
