AZ45E15DACW1 SEALED SYSTEM

AZ45E15DACW1 SEALED SYSTEM

Written by

in

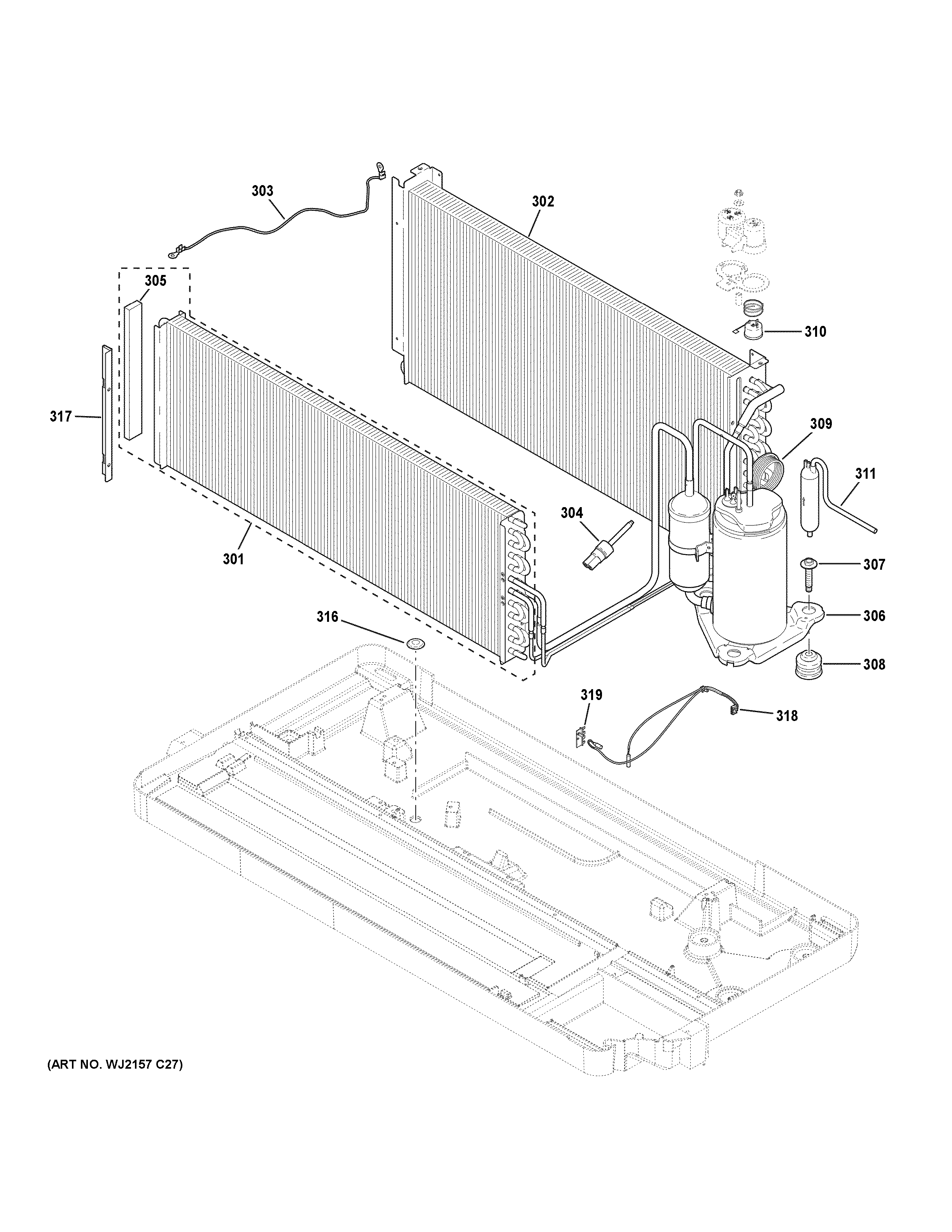

AZ45E15DACW1 SEALED SYSTEM

Products

PositionProduct
301WP88X21662 GE Indoor Coil Assembly with Foam
302WP87X25583 GE Outdoor Coil Assembly
303GROUND HARNESS
304WP56X21582 GE Pressure Switch Replacement
305WP60X20971 GE Foam Insulation Coil Side
306WP98X21105 GE Air Conditioner Assembly Compressor Kit
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21371 GE Cap Tube Sub Assembly
310WP20X20919 GE Overload Compressor
311WP56X22821 GE Dryer
316WP01X20980 GE Base Pan Plug
317WP01X23065 GE Coil Clip Left
318WP26X20982 GE Air Conditioner Thermistor
319WP65X25533 GE Thermistor Holder
